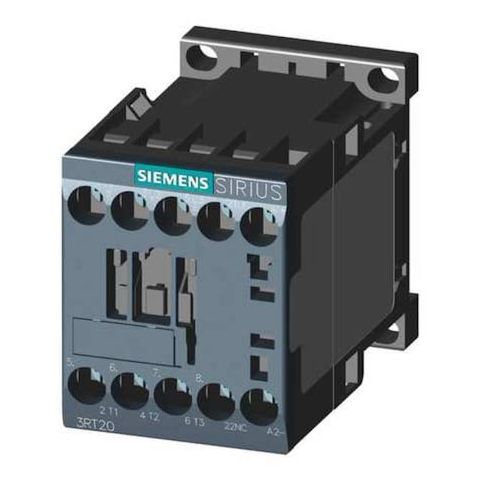

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20171BB42

• The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-operated switching device rated for operation within IEC standards. It operates with a 24 V DC coil

• features include one auxiliary contact (1NC). Supports DIN Rail or surface mounting in a vertical orientation
• part of the SIRIUS 3RT20 series, Frame Size S00.

  Key features

• - Coil voltage: 24 V DC
• - Action: Non-Reversing
• - Poles and contacts: 3 poles
• main contacts 3 normally open (3 NO)
• auxiliary contact 1NC
• - Includes one auxiliary contact (1NC)
• - Frame/Series: Frame Size S00
• Series SIRIUS 3RT20
• - Terminals: Screw
• - Mounting: DIN Rail, Surface
• Mounting Position: Vertical
• - Rated for IP20 protection
• enclosure details are specified accordingly.
• - Rated for operation up to 690 V AC within specified conditions.
• - Designed to operate at full load currents of up to 12 A inductive and 22 A resistive under specified conditions.
• - Has an operational lifespan based on mechanical cycling as per manufacturer specifications.
• - Rated for use within temperature ranges from -13 °F to 140 °F (-25 °C to +60 °C).
• - Dimensions (overall): Width 2.45 in
• Height 1.95 in
• Depth 3.2 in
• - Mounting details: Mounting hole diameter 0.2 in
• hole distances 1.97 in (height) and 1.38 in (width)
• - Phase: Three
• - Reversing: No
• - Max operating watts: 6 kW (400 V, AC-3)
• 13 kW (400 V, AC-1)
• - Standards: REACH Art 33, WEEE (2012/19/EU)
