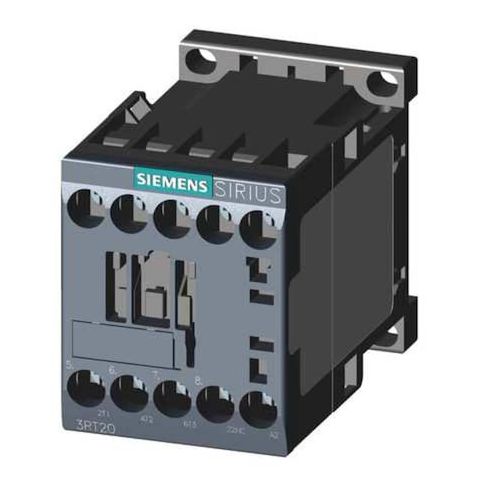

IEC Magnetic Contactor, 1NC, 220V-240V AC, 3 P, Non-Reversing, Screw MPN:3RT20171AP62

• The Siemens IEC Magnetic Contactor is a three-pole, non-reversing electrical switch rated for controlling power circuits within specified parameters. It is rated for operation with a 220-240 V AC coil and includes three normally open main contacts and one normally closed auxiliary contact. The device is part of the SIRIUS 3RT20 family (frame S00), uses screw terminals, and does not include an embedded surge suppressor or enclosure. Compatible with DIN Rail or surface mounting in the vertical orientation.

  Key features

• - Action: Non-Reversing
• - Coil Voltage: 220-240 V AC
• - Poles: 3
• Main contacts: 3 normally open
• - Auxiliary contacts: 1 NC
• - Terminal connection: Screw
• - Reversing: No
• - Series / Frame: SIRIUS 3RT20 / S00
• - Frequency: 50/60 Hz
• Phase: Three
• - Max voltage rating: rated for operation up to 690 V AC under specified conditions.
• - IP Rating: IP20
• - Embedded surge suppressor: does not include an embedded surge suppression device.
• - Enclosure: No Enclosure
• - Full Load Amps: Inductive 12 A
• Resistive 22 A
• - Max Operating Watts: 6 kW (400 V, AC-3)
• 13 kW (400 V, AC-1)
• - Mechanical durability: 30,000,000 cycles
• - Temperature range: -13 °F to 140 °F
• - Mounting style: DIN Rail, Surface
• Mounting position: Vertical
• - Dimensions (approx.): Height 3.08 in
• Width 1.97 in
• Depth 2.45 in
• - Mounting hardware: Mounting hole diameter 0.20 in
• hole spacing 1.97 in (height) and 1.38 in (width)
