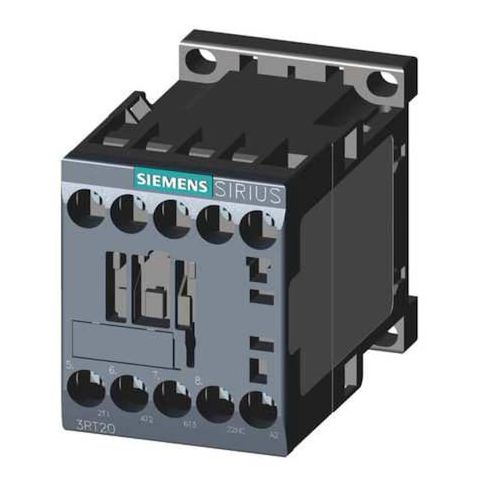

IEC Magnetic Contactor, 1NC, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20171AN62

• The SIEMENS IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within the specified electrical parameters. It uses a 208 V AC coil and is part of the SIRIUS 3RT20 family, including one NC auxiliary contact. The device is compatible with DIN Rail and surface mounting as specified and uses screw terminals for connections.

  - Coil voltage: 208 V AC

• - Action: Non-Reversing
• - Reversing: No
• - Frame Size / Series: S00 / SIRIUS 3RT20
• - Poles / Main Contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary contacts: 1 NC
• - Electrical connection: Screws
• - Enclosure: No Enclosure
• IP20
• - Maximum voltage rating: 690 V AC
• - Frequency: 50/60 Hz
• - Full load current (Inductive/Resistive): Specifies maximum rated currents according to standards
• - HP ratings (various voltages/phases): 1/2 hp @ 120V
• 2 hp @ 230V
• 2 hp @ 240V
• 3 hp @ 208V & 240V (3-phase)
• 7 1/2 hp @ 480V (3-phase)
• 10 hp @ 575V (3-phase)
• - Watt loss: Specifies typical power dissipation under normal conditions
• - Dimensions: Width 1.77 in
• Height 3.08 in
• Depth 2.45 in
• - Mounting: DIN Rail, Surface
• Vertical
• - Temperature range: -13 °F to 140 °F
• - Mechanical durability: 30,000,000 cycles
• - Maximum operating watts: 6 kW (400 V, AC-3)
• 13 kW (400 V, AC-1)
• - Standards: REACH Art 33, WEEE
• - Auxiliary: Includes auxiliary contacts (1)
