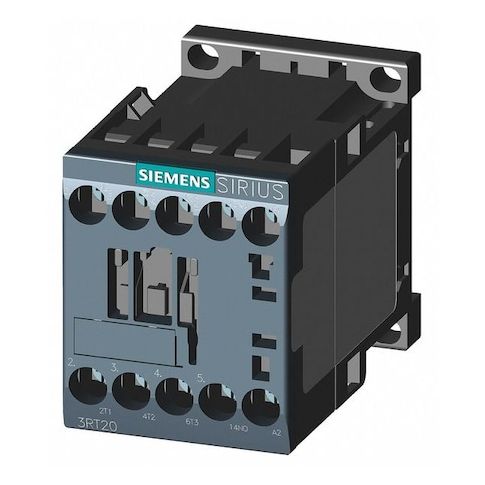

IEC Magnetic Contactor, 1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20171AN61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in industrial power circuits. Its compact, modular design makes it easy to integrate into existing systems, while its non-reversing action ensures safe and controlled switching. Suitable for use in a variety of applications, including motor control and lighting systems, this contactor offers improved performance and reduced energy losses. With its 208V AC coil and 1NO auxiliary contact, it provides a reliable and efficient solution for controlling power circuits in industrial settings.
Top product features:
- The Siemens IEC Magnetic Contactor is electrically operated and uses an electromagnetic coil to operate the contacts.
- The device is compact and modular in design.
- The contactor has a normally open auxiliary contact for additional functionality.
Top product applications:
- Industrial Control Systems
- Automotive Assembly Line Equipment
- Power Generation and Distribution Systems
The Siemens IEC Magnetic Contactor is an electrically operated switching device used to control power circuits in accordance with IEC standards. It employs an electromagnetic coil to operate the contacts
- described as a compact, modular design. This model is non-reversing and 3-pole, with a 208 V AC coil, screws for electrical connections, and one normally open auxiliary contact (1NO). It belongs to the SIRIUS 3RT20 series (Frame S00) and is compatible with DIN Rail or surface mounting in a vertical orientation
- provided without enclosure.
- Coil Voltage: 208 V AC
- - Action: Non-Reversing
- - Reversing: No
- - Poles/Phase: 3P, Three-phase
- - Auxiliary Contacts: 1 NO
- - Series/Frame: SIRIUS 3RT20, Frame S00
- - Electrical Connection: Screws
- - Mounting Style/Position: DIN Rail or Surface
- Vertical
- - Enclosure/IP: IP20
- No Enclosure
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 12 A
- Resistive 22 A
- - Watts Loss: 0.5 W (Current Dependent)
- 6.5 W (Current Independent)
- - Overall Dimensions: Depth 2.45 in
- Height 3.08 in
- Width 1.97 in
- - Mounting Hole Diameter: 0.20 in
- - Mounting Hole Distances: Height 1.97 in
- Width 1.38 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
