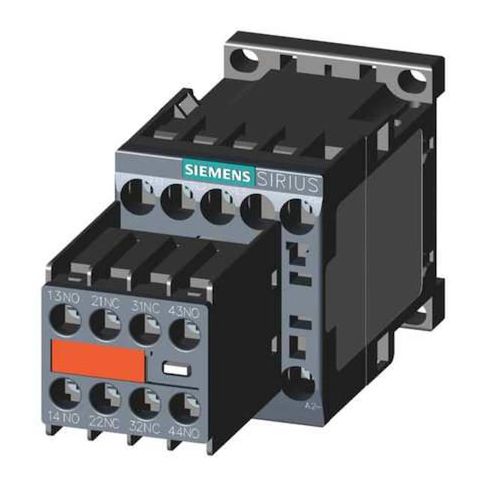

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20161BB443MA0

• The Siemens IEC Magnetic Contactor is N/A (contextually neutral, no guarantee implied), a three-pole switching device with a 24 V DC coil. It contains three normally open main contacts rated for switching applications and is equipped with four auxiliary contacts (2 NO / 2 NC) rated for general-purpose use. The device uses screw terminals and is designed for DIN rail or surface mounting in a vertical orientation within specified parameters, with Frame B and frame size S00.

  - Action: N/A (contextually neutral, no guarantee implied)

• - Poles / Main contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary contacts: Equipped with four auxiliary contacts (2 NO / 2 NC) rated for general-purpose use
• - Coil voltage: 24 V DC
• - Contactor style: IEC
• Series: SIRIUS 3RT Safety Contactors
• - Frame: Frame B
• Frame Size: S00
• - Mounting: DIN Rail or Surface mounting
• Mounting position: Vertical
• - Electrical connection: Screws
• - Maximum voltage rating: 690 V AC
• - IP rating / enclosure: IP20
• No Enclosure
• - Includes: Permanent Mounted Aux Contact
• - Full load amps: 22 A resistive
• 9 A inductive
• - Mechanical durability: Mechanical durability rating based on standard testing procedures
• actual lifespan may vary depending on usage conditions
• - Watts loss: Power dissipation ratings under specified test conditions
• actual values may vary during operation
• - Overall dimensions: 2.65 in W x 2.45 in H x 4.8 in D
• - Mounting hole details: Diameter 0.2 in
• Height spacing 1.97 in
• Width spacing 1.38 in
• - Phase: Three
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Includes: Permanent Mounted Aux Contact
