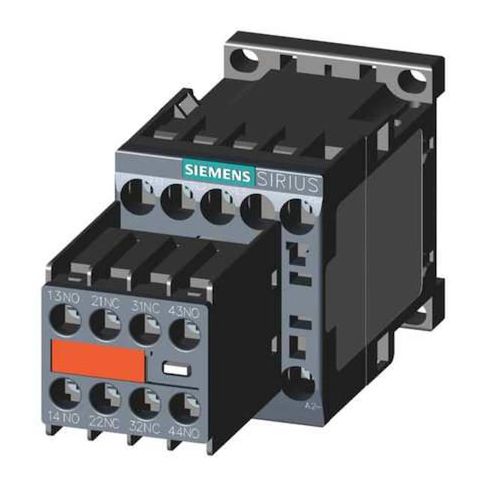

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20161AK643MA0
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in IEC-standard applications. With a 3-pole, non-reversing design, it provides a secure and consistent operation. The unit features 2 NO/2 NC auxiliary contacts and a 110-120 V AC coil, making it suitable for a variety of applications, including industrial control systems and safety circuits. Its compact design and long mechanical life of 30,000,000 cycles ensure a low-maintenance operation, while its high current ratings of 9 A inductive and 22 A resistive support heavy-duty applications. Ideal for use in harsh environments, it operates within a wide temperature range of -13°F to 140°F.
Top product features:
- The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device rated for operation within IEC-standard applications.
- It uses a 110–120 V AC coil to operate the main contacts and includes auxiliary contacts configured as 2 NO/2 NC (4 total).
- It supports 9 A inductive and 22 A resistive full-load currents and offers a long mechanical life, with 30,000,000 cycles.
Top product applications:
- Industrial Control Systems
- Electrical Distribution Panels
- Machine Automation and Control
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device rated for operation within IEC-standard applications. It uses a 110–120 V AC coil to operate the main contacts and includes auxiliary contacts configured as 2 NO/2 NC (4 total). The unit is part of the SIRIUS 3RT Safety Contactors series with frame size S00, uses screw terminals, and is supplied with a permanent mounted auxiliary contact. It has no enclosure (IP20) and a maximum voltage rating of 690 V AC, supporting 50/60 Hz operation. The contactor supports 9 A inductive and 22 A resistive full-load currents and offers a long mechanical life, with 30,000,000 cycles.
Key features
- - Coil Voltage: 110–120 V AC
- - Action: Non-Reversing
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 4 total (2 NO / 2 NC)
- - Electrical Connection: Screw terminals
- - Enclosure / IP Rating: No enclosure
- IP20
- - Frame / Series: Frame Size S00
- Series SIRIUS 3RT Safety Contactors
- - Maximum Voltage: 690 V AC
- - Full Load Amps: Inductive 9 A
- Resistive 22 A
- - Watts Loss: 0.3 W (current dependent)
- 4.4 W (current independent)
- - Mounting: DIN Rail or Surface
- Vertical mounting
- - Operating Temperature Range: -13°F to 140°F
- - Included Accessories: Permanent mounted auxiliary contact
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 2.80
- Package Height: 2.30
- Package Weight: 0.70
