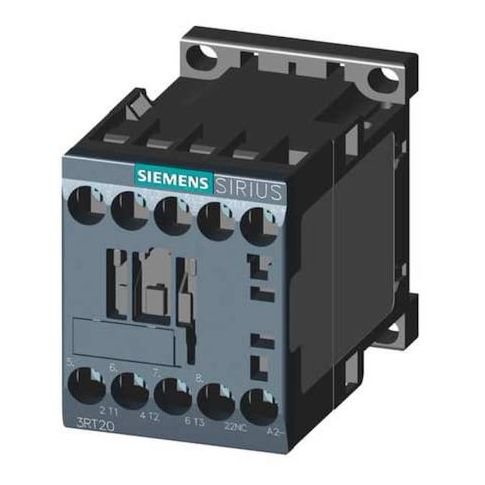

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20161BB42

• The Siemens IEC Magnetic Contactor is an IEC-style electromagnetic switching device rated for operation within specified electrical parameters. It is a 3-pole, non-reversing unit with a 24 V DC coil, includes one NC auxiliary contact and three normally open main contacts as specified by the manufacturer. It uses screw terminals and is manufactured according to standard specifications for the SIRIUS 3RT20 series, frame size S00.

  - Coil voltage: 24 V DC

• - Action: Non-Reversing
• - Poles/Main contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary contacts: 1 NC
• - Reversing: No
• - Frame / Series: manufactured according to standard specifications for the SIRIUS 3RT20 series, frame size S00
• - Electrical connection: compatible with screw terminal connections as specified by the manufacturer
• - Embedded surge suppressor: does not include an integrated surge suppression device
• - Enclosure: designed with an IP20 enclosure rating indicating degree of protection against solids and liquids per IEC standards
• - Maximum voltage rating: rated for operation up to a maximum voltage of 690V AC within specified conditions
• - Mounting style: DIN Rail, Surface
• - Mechanical durability: tested for mechanical durability over a specified number of operational cycles under standard testing conditions
• - Operating temperature: rated for operation within the temperature range of approximately -25°C to 60°C (converted from °F) based on standard conversion
• actual performance may vary outside this range
• - Phase: Three
• - Dimensions (Overall): Depth 3.25 in
• Height 2.40 in
• Width 2.00 in
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Maximum watts: 4 kW (400V, AC-3)
• 13 kW (400V, AC-1)
