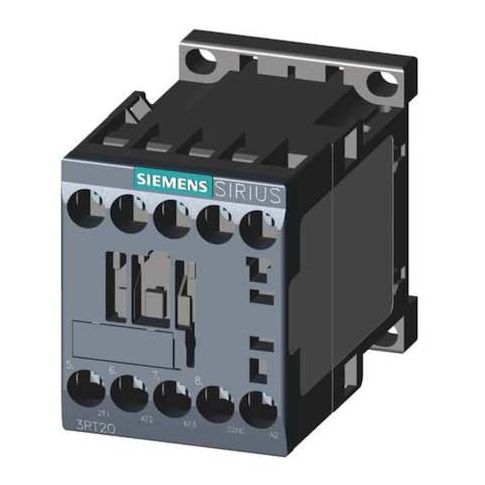

IEC Magnetic Contactor, 1NC, 220V-240V AC, 3 P, Non-Reversing, Screw MPN:3RT20161AP62

• The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-operated switch rated for operation within the specified voltage range of 220–240 V AC. It includes auxiliary contacts configured as 1 NC and has three normally open main contacts

• connections are made via screw terminals. The unit belongs to the SIRIUS 3RT20 series (frame S00) and supports DIN Rail or surface mounting
• it has an IP20 rating indicating limited ingress protection.

  Key features

• - Action and contacts: Non-Reversing
• 3 poles
• 3 normally open main contacts
• Auxiliary contact: 1 NC (1NC configuration)
• Includes auxiliary contacts: Yes
• Connection: Screw
• - Coil and power: Rated for operation within specified voltage ranges of approximately ±10%
• frequency 50/60 Hz
• Phase Three
• Reversing: No
• Maximum voltage rating 690 V AC
• - Enclosure and mounting: Enclosure No Enclosure
• IP Rating IP20
• Mounting DIN Rail, Surface
• Mounting Position Vertical
• - Frame/series: Frame/Code S00
• Frame Size S00
• Series SIRIUS 3RT20
• - Ratings: Full Load Amps Inductive 9 A
• Resistive 22 A
• HP (various): e.g., 1/3 hp at 120 V
• 1 hp at 230–240 V (single phase)
• 2 hp at 208 V
• 3 hp at 240 V
• 5 hp at 480 V
• 7.5 hp at 575 V
• - Note: These ratings specify electrical capacities but do not guarantee performance under all conditions or over time. They should be used within their rated parameters for proper operation.
• - Power and performance: Max Operating Watts 4 kW (400 V AC-3)
• 13 kW (400 V AC-1)
• Mechanical durability 30,000,000 cycles
• - Note: Durability figures indicate expected cycle life based on testing conditions but do not constitute a guarantee of lifespan in actual use environments.
• - Operating conditions: Maximum operating temperature 140°F
• Minimum operating temperature -13°F
• - Note: These values specify typical operational temperature ranges but do not ensure safe operation outside these limits or account for environmental factors that could affect performance or safety margins.
• - Dimensions: Overall width 2 in
• height 2.4 in
• depth 4 in
• - Standards and order features: Standards REACH Art 33, WEEE
• Terminal connection type Screw
• Includes Auxiliary Contacts Yes
• Item IEC Magnetic Contactor
