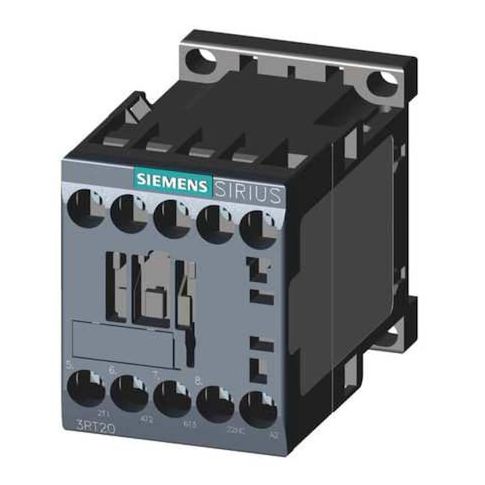

IEC Magnetic Contactor, 1NC, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20171AK62
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient 3-pole, non-reversing electrically operated switch designed for control-panel applications. Rated for use within specified electrical parameters, it features a coil voltage of 110-120 V AC and includes an auxiliary contact configured as 1NC. Suitable for use in a variety of applications, including industrial control systems and machinery, this device offers benefits such as high mechanical durability, with 30,000,000 cycles, and a maximum voltage rating of 690 V AC. Its compact design and DIN Rail or surface mounting options make it ideal for use in control panels and other applications where space is limited.
Top product features:
- Operated electrically with a coil voltage of 110–120 V AC
- Includes an auxiliary contact configured as 1NC
- Rated for 30,000,000 cycles of mechanical durability
Top product applications:
- Industrial Automation
- Control Panels
- Machine Automation
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for use within specified electrical parameters. It uses a coil voltage of 110–120 V AC and includes an auxiliary contact configured as 1NC. This IEC-style device has dimensions suitable for control-panel applications and is supplied without an enclosure.
- Action: Non-Reversing
- - Reversing: No
- - Poles: 3
- - Auxiliary Contact Configuration: 1NC
- - Auxiliary Contact Form: 1NC
- - Coil Voltage: 110–120 V AC
- - Frame Size: S00
- - Frame / Series / Code: SIRIUS 3RT20
- - Mounting Style: DIN Rail, Surface
- - Electrical Connection: Screws
- - Terminal Connection Type: Screw
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Maximum Voltage Rating: 690 V AC
- - Full Load Amps (Inductive/Resistive): 12 A / 22 A
- - Phase: Three
- - Frequency: 50/60 Hz
- - Mechanical Durability: 30,000,000 cycles
- - Includes Auxiliary Contacts: Yes
- - Number of Normally Open Main Contacts: 3
- - Overall Depth: 3.3 in
- Overall Height: 2.6 in
- Overall Width: 2.5 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 1.80
- Package Weight: 0.50
