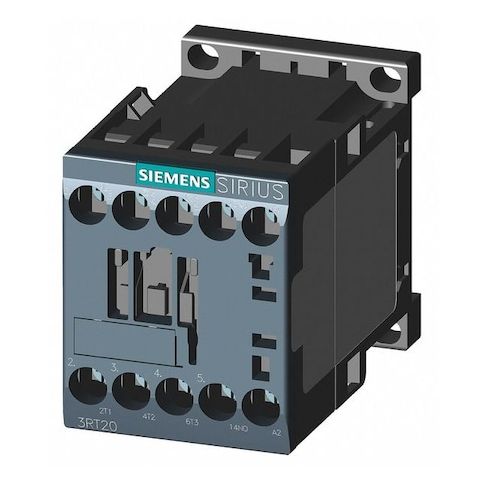

IEC Magnetic Contactor, 1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20171AK61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for a wide range of applications. Suitable for use in electrical panels, control systems, and industrial automation, this three-pole, non-reversing contactor provides smooth and controlled switching of electrical loads. With a coil voltage of 110-120 V AC and a high inductive load capacity of 12 A, it's perfect for applications such as motor control, lighting systems, and HVAC systems. Its compact design and easy mounting options make it ideal for use in tight spaces, while its durable construction ensures long-lasting performance and reliability.
Top product features:
- Three-pole, non-reversing switching device
- Features one auxiliary contact (1NO) for added functionality
- Uses screw terminals for secure and reliable connections
Top product applications:
- Motor control systems for industrial applications
- Lighting control systems for commercial buildings
- Power distribution systems for data centers
The Siemens IEC Magnetic Contactor is a three-pole, non-reversing switching device (IEC magnetic contactor) with a coil voltage of 110–120 V AC. It features one auxiliary contact (1NO) and is part of the SIRIUS 3RT20 series (Frame Size S00). It uses screw terminals and supports DIN Rail or Surface mounting, with an IP20 enclosure
- suitable for installation within appropriate enclosures per applicable safety standards. This unit is rated for use within the specified voltage and current ranges, in accordance with IEC standards.
- Coil Voltage: 110–120 V AC
- - Action: Non-Reversing
- Reversing: No
- - Phase: Three
- Poles: 3
- - Main Contacts: 3 normally open
- - Auxiliary Contacts: 1 NO (Form 1 NO)
- - Includes Auxiliary Contacts: Yes
- Number of Aux Contacts: 1
- - Terminal Connection Type: Screw
- - Mounting Style: DIN Rail, Surface
- - Frame Size / Series: S00
- SIRIUS 3RT20
- - IP Rating: IP20
- Enclosure: Suitable for installation within appropriate enclosures per applicable safety standards
- - Frequency: 50/60 Hz
- - Maximum Voltage Rating: 690 V AC
- - Full Load Amps: Inductive 12 A
- Resistive 22 A
- - Power Dissipation: Specifies the typical power dissipation under rated conditions
- actual values may vary based on operating conditions
- - Mechanical Operating Durability: Rated for a specified number of operational cycles under normal use
- actual lifespan may vary depending on application conditions
- - Operating Temperature: Designed to operate within the specified temperature range
- performance outside this range is not guaranteed
- - Dimensions: Depth 2.87 in
- Height 2.45 in
- Width 1.77 in
- - Mounting Details: Mounting Hole Diameter 0.2 in
- Hole Distances – Height 1.97 in
- Width 1.38 in
- - Embedded Surge Suppressor: Does not include an integrated surge suppression device
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 1.80
- Package Weight: 0.50
