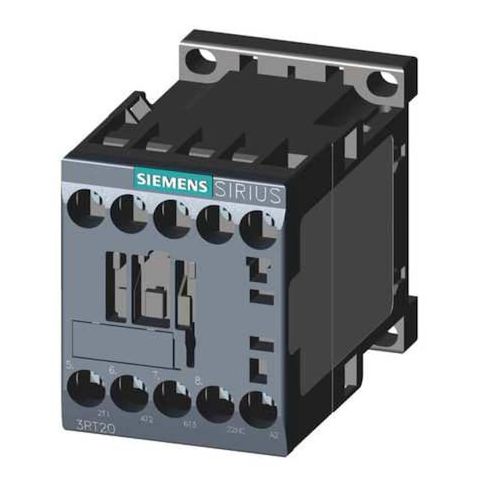

IEC Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20171AB02
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in a variety of applications. With its non-reversing action and 3-pole design, it provides a secure and stable connection for loads up to 12A inductive and 22A resistive. Suitable for use in industrial settings, such as manufacturing and processing plants, it can be mounted on a DIN Rail or surface mounted in a vertical orientation. Its compact size and easy-to-use screw connections make it an ideal choice for applications where space is limited and high reliability is required.
Top product features:
- The product has a non-reversing action, which prevents the contactor from switching back and forth between two states.
- The product has three poles, allowing it to control three separate circuits or devices.
- The product has a screw terminal connection type, which provides a secure and easy-to-use connection method for electrical wiring.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch (24 V AC) with one NC auxiliary contact. It uses screws for electrical connections and belongs to the SIRIUS 3RT20 family (frame S00). Rated for operation within the specified voltage ranges. Mounting options include DIN Rail or surface mounting in a vertical orientation.
Key features
- - Coil Voltage: 24 V AC
- - Action: Non-Reversing
- - Poles: 3
- - Auxiliary Contacts: 1 NC
- - Main Contacts: 3 NO
- - Frame Size / Series: S00 / SIRIUS 3RT20
- - Terminal Connection Type: Screw
- - Mounting Style / Position: DIN Rail, Surface
- Vertical
- - IP Rating: IP20
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 12 A
- Resistive 22 A
- - Mechanical Durability: 30,000,000 cycles
- - Includes Auxiliary Contacts: Yes
- - Dimensions (approx.): Width 1.77 in
- Height 2.4 in
- Depth 3.3 in
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Operating Temperature: Rated for operation within the specified temperature range
- - Phase: Three
- - Reversing: No
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
