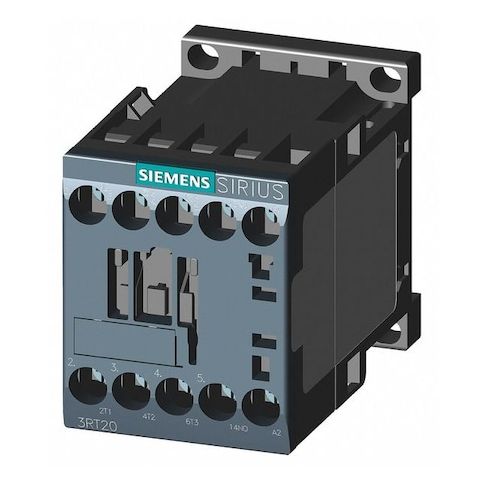

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20171AB01
Free Shipping
In Stock
The Siemens SIRIUS 3RT20 IEC Magnetic Contactor is a versatile and reliable solution for controlling electrical currents in a variety of applications. With its non-reversing operation and 1 normally open auxiliary contact, it's ideal for use in industrial control systems, motor control, and power distribution. The contactor's compact design and screw terminal connections make it easy to install and maintain, while its high durability and long lifespan ensure reliable operation in harsh environments. Suitable for use in a range of industries, including manufacturing, oil and gas, and renewable energy, this contactor provides a reliable and efficient solution for controlling electrical currents.
Top product features:
- Non-Reversing operation allows for control of current flow in a single direction as specified.
- 1 normally open auxiliary contact (1NO) provides an additional control point for system operation.
- Screw terminals enable secure and easy electrical connections.
Top product applications:
- Motor control in industrial automation
- Control of pumps and fans in HVAC systems
- Switching of power supplies in data centers and server rooms
SIEMENS IEC Magnetic Contactor, 3-pole with 24 V AC coil, non-reversing operation and 1 normally open auxiliary contact (1NO). This IEC-style magnetic contactor is part of the SIRIUS 3RT20 family and is rated for switching within specified electrical parameters and conditions. It uses screw terminals and supports DIN Rail or Surface mounting, with an IP20 enclosure rating and no embedded surge suppressor or enclosure.
Key features
- - Action: Non-Reversing – controls current flow in a single direction as specified
- - Coil Voltage: 24 V AC
- Coil Volts: 24 V AC
- - Poles/Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 1 auxiliary contact (1NO)
- Includes Auxiliary Contacts: Yes
- Auxiliary Form: 1NO
- - Frame/Series: Frame Size S00
- Series SIRIUS 3RT20
- Contactor Style: IEC
- - Electrical ratings: Frequency 50/60 Hz
- Maximum Voltage Rating 690 V AC
- IP rating IP20
- compatible with specified environmental conditions
- ensure proper installation for safety
- - Operating currents: Full Load Amps Inductive 12 A
- Resistive 22 A
- Full Load Current Inductive 12 A
- Resistive 22 A
- - Power and HP ratings: rated for operation within specified power ranges under recommended conditions
- 6 kW (400 V AC-3), 13 kW (400 V AC-1)
- - Size and mounting: Overall Depth 3.25 in
- Overall Height 2.4 in
- Overall Width 1.6 in
- Depth 2.87 in
- Mounting Style DIN Rail, Surface
- Mount Position Vertical
- - Connection and durability: Terminal Connection Type Screw
- Electrical Connection Screws
- Mechanical Durability 30,000,000 cycles
- - Environmental and operating range: Maximum Operating Temperature 140 F
- Minimum Operating Temperature -13 F
- - Standards and labeling: Series/Model includes SIRIUS 3RT20
- Standards include REACH Art 33, WEEE
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 1.80
- Package Weight: 0.50
