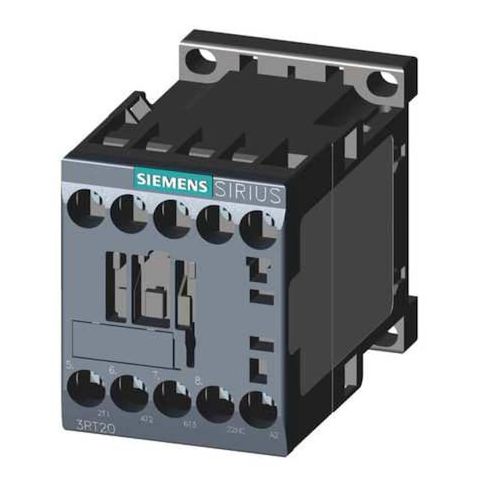

IEC Magnetic Contactor, 1NC, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20161AN62
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for a wide range of industrial applications. Designed for operation within IEC standards, this device features 3 poles, non-reversing configuration, and a coil rated at 208 V AC. With one auxiliary contact (1NC) and screw terminals for wiring, it offers easy installation and maintenance. Suitable for use in various industries, including manufacturing, processing, and automation, this contactor provides a high level of mechanical durability, withstanding up to 30 million cycles. Its compact design and DIN Rail or surface mounting options make it an ideal choice for applications requiring a reliable and space-efficient solution.
Top product features:
- Non-Reversing action allows for one-way control of electrical circuits
- Three-pole configuration enables the device to handle three-phase electrical connections
- Screw terminals provide a secure and reliable method for wiring connections
Top product applications:
- Control Panels for Industrial Machines
- Relay Panels for Power Distribution Systems
- Motor Control Centers for High-End Manufacturing Equipment
SIEMENS IEC Magnetic Contactor, 1NC, 208 V AC, 3P, Non-Reversing, Screw is rated for operation within IEC standards. The device features 3 poles, non-reversing configuration, compatible with the SIRIUS 3RT20 line (Frame S00), with a coil rated at 208 V AC. It includes one auxiliary contact (1NC) and utilizes screw terminals for wiring. Mounting options include DIN Rail or surface mounting in a vertical orientation
- it has an enclosure rated at IP20.
Key features
- - Action: Non-Reversing (factual characteristic)
- - Poles/Main Contacts: 3 poles
- normally open main contacts specified as per product design
- - Auxiliary Contacts: 1 Normally Closed contact specified as per product design
- - Coil Voltage: Rated at approximately 208 V AC within specified parameters
- - Frame/Series: information provided for identification purposes only
- - Terminals: Terminal type is screw-type as specified by manufacturer specifications
- - Mounting: Compatible with DIN Rail or surface mounting in vertical position within installation guidelines
- - Enclosure/IP: Enclosure provides an IP20 rating according to standard classifications
- - Max Voltage: Rated for operation up to approximately 690 V AC within manufacturer-specified limits
- frequency range of approximately 50/60 Hz supported based on specifications
- - Full Load Amps: Inductive 9 A
- Resistive 22 A
- - HP @ Three Phase: 208V 2 hp
- 240V 3 hp
- 480V 5 hp
- 575V 7 1/2 hp
- - Operating Temperature: -13 °F to 140 °F
- - Mechanical Durability: 30,000,000 cycles
- - Overall Dimensions: 3.15 in (D) × 2.40 in (H) × 1.95 in (W)
- - Mounting Hole: Diameter 0.2 in
- Hole Spacing: 1.97 in (height) × 1.38 in (width)
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Embedded Surge Suppressor: No
- - Includes Auxiliary Contacts: Yes
- - Watts Loss: 0.3 W (Current Dependent)
- 4.8 W (Current Independent)
(Additional specifications such as Full Load Amps, HP ratings, operating temp, and other listed parameters remain as provided.)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
