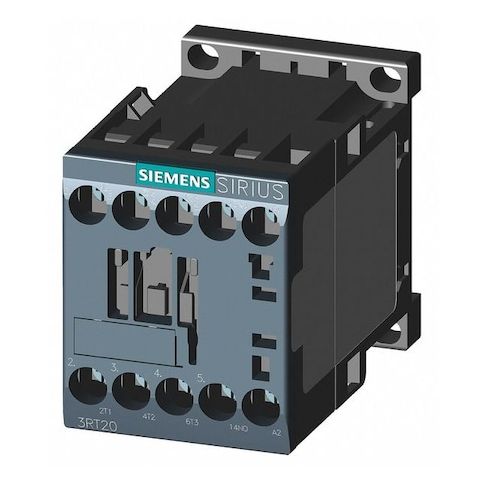

IEC Magnetic Contactor, 1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20161AN61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in industrial applications. This 3-pole, non-reversing device features a 208V AC coil and one normally open auxiliary contact, making it ideal for use in control panels with compatible specifications. With its screw-type terminations and compact design, it can be easily mounted on DIN Rail or surfaces in a vertical orientation. Suitable for use in a variety of applications, including manufacturing, oil and gas, and water treatment, this contactor provides reliable control and efficient power management. Its high-quality construction ensures long-lasting performance and minimal downtime.
Top product features:
- The Siemens IEC Magnetic Contactor has a non-reversing action.
- It has 3 normally open main contacts.
- It includes 1 auxiliary contact (1NO).
Top product applications:
- Control Panels
- Control Systems
- Industrial Automation
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch that uses a 208 V AC coil to control power circuits. It is an IEC-style device with one normally open auxiliary contact (1NO) and screw-type terminations, intended for use in control panels with compatible specifications. This unit is part of the SIRIUS 3RT20 series, frame size S00, configured for DIN Rail or surface mounting in a vertical orientation.
Key features
- - Action: Non-Reversing
- - Poles / Main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: Includes 1 auxiliary contact (1NO)
- - Coil voltage: 208 V AC
- - Frame/Series: S00, SIRIUS 3RT20
- - Frequency: 50/60 Hz
- - Maximum voltage rating: 690 V AC
- - Electrical connection: Screw terminals
- - Enclosure: No Enclosure (IP20)
- - Mounting: DIN Rail, Surface
- Mounting position vertical
- - Dimensions (approx.): Width 1.97 in
- Height 3.08 in
- Overall depth 2.45 in
- - Maximum load ratings: Full Load Amps - Inductive 9 A
- Full Load Amps - Resistive 22 A
- - Power ratings (3-phase @ 208 V): 2 hp
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
