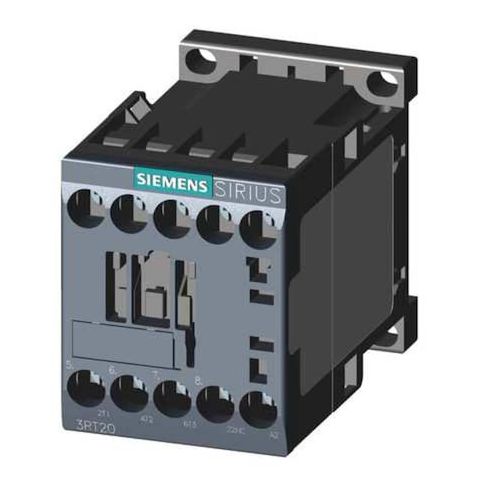

IEC Magnetic Contactor, 1NC, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20161AK62
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for various applications in industrial settings. It can be used to control and protect motors, pumps, and other equipment in a wide range of industries, including manufacturing, oil and gas, and water treatment. The non-reversing feature ensures safe and consistent operation, while the 3-pole design provides a high level of reliability and flexibility. With its compact design and easy installation, this contactor is perfect for use in control panels, machine tools, and other applications where precise control is required.
Top product features:
- The Siemens IEC Magnetic Contactor operates with a coil voltage of 110–120 V AC.
- It includes one auxiliary contact (1NC) for additional functionality.
- It employs screw terminals for wiring, providing a secure and easy connection method.
Top product applications:
- Industrial Automation Control Systems
- Motor Control Circuits
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switching device rated for operation within the specified IEC standards. It operates with a coil voltage of 110–120 V AC as specified and is part of the SIRIUS 3RT20 family (frame size S00). The unit includes one auxiliary contact (1NC) and employs screw terminals for wiring.
- Action: Non-Reversing
- - Poles: 3
- - Main Contacts: 3 normally open
- - Auxiliary Contacts: 1 (1NC)
- - Coil Voltage: 110–120 V AC
- - Frequency: 50/60 Hz
- - Phase: Three
- - Terminal Connection: Screw
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Frame Size / Series: S00 / SIRIUS 3RT20
- - Mounting Style: DIN Rail, Surface
- - Mounting Position: Vertical
- - Overall Dimensions: Depth 3.15 in
- Height 2.40 in
- Width 1.95 in
- - Mounting Hole Diameter: 0.20 in
- - Mounting Hole Distances: Height 1.97 in
- Width 1.38 in
- - Operating Temperature: -13 °F to 140 °F
- - Maximum Voltage Rating: 690 V AC
- - Max Operating Watts: 4 kW (400 V AC-3)
- 13 kW (400 V AC-1)
- - Full Load Amps: Inductive 9 A
- Resistive 22 A
- - Watts Loss: 0.3 W (current dependent)
- 4.4 W (current independent)
- - Mechanical Durability: 30,000,000 cycles
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Reversing: No
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
