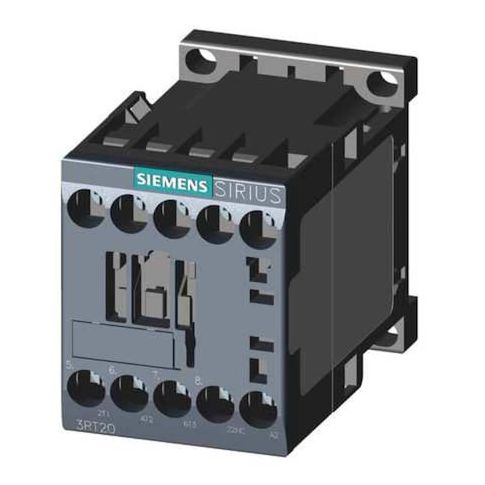

IEC Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20161AB02
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a variety of three-phase applications. Designed to meet IEC standards, this 3-pole, non-reversing contactor is ideal for use in industrial settings where precision and durability are crucial. With a simple screw terminal connection and compact design, it's easy to integrate into existing systems. The contactor's robust mechanical durability and high operating wattage make it suitable for demanding applications, including motor control and power distribution. Its compact size and DIN Rail or surface mounting options make it a versatile solution for a range of industries.
Top product features:
- Non-Reversing Action
- Screw Terminal Connection
- Three-Pole Design
Top product applications:
- Power circuit control in accordance with IEC standards
- Three-phase applications with a voltage range of up to 690 V AC
- High-power applications such as industrial machinery and equipment
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch (24 V AC) designed to control power circuits in accordance with IEC standards. It uses screw terminals and is part of the SIRIUS 3RT20 family (Frame S00), with one auxiliary contact (1NC). The device is designed for use within the specified voltage range of up to 690 V AC in three-phase applications, and features mounting options on DIN Rail or surface mounting, with no enclosure and IP20 protection. Overall dimensions are approximately 1.97 inches (W) x 3.08 inches (H) x 2.45 inches (D).
- Coil voltage: 24 V AC
- - Action: Non-Reversing
- Reversing: No
- - Auxiliary contacts: 1 (1NC)
- Includes Auxiliary Contacts: Yes
- - Poles/Phase: 3
- Phase: Three
- - Terminal connection: Screw
- - Frame size/Series: S00
- Series: SIRIUS 3RT20
- - Enclosure: No Enclosure
- IP Rating: IP20
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Frequency: 50/60 Hz
- - Maximum voltage: 690 V AC
- - Full Load Amps: Inductive 9 A
- Resistive 22 A
- - HP @ Three Phase: 208V 2 hp
- 240V 3 hp
- 480V 5 hp
- 600V 7 1/2 hp
- - Max Operating Watts: 4 kW (at 400V, AC-3)
- 13 kW (at 400V, AC-1)
- - Mechanical durability: 30,000,000 cycles
- - Overall dimensions: approximately 1.97 inches (W) x 3.08 inches (H) x 2.45 inches (D)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
