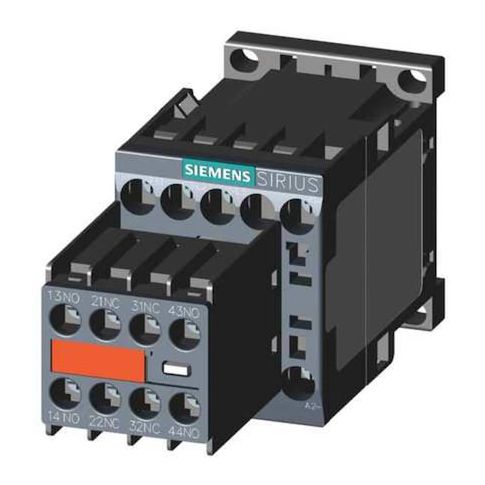

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AK643MA0
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient device for switching power circuits in IEC-standard control systems. With its 3-pole, non-reversing design, it controls current flow in a single direction, making it ideal for applications where precise control is necessary. Its compact design and compatibility with DIN Rail or surface mounting make it easy to integrate into existing systems. The contactor's robust construction and high-cycle rating ensure reliable operation in a wide range of industrial settings, including manufacturing, processing, and automation applications. Its ease of use and high reliability make it a valuable addition to any control system.
Top product features:
- Controls current flow in a single direction when activated
- Provides four auxiliary contacts configured as 2NO/2NC
- Operates three main contacts using a 110–120 V AC coil
Top product applications:
- Industrial Automation Systems
- Control Panels for Power Distribution
- Motor Control Circuits
Siemens IEC Magnetic Contactor is a 3-pole, non-reversing device used to switch power circuits in IEC-standard control systems. It uses a 110–120 V AC coil to operate three main contacts and provides four auxiliary contacts configured as 2NO/2NC (4 total). The unit is compatible with DIN Rail or surface mounting as specified
- does not include surge suppression features. It belongs to the SIRIUS 3RT Safety Contactors series, frame size S00, and is rated for operation within the specified voltage and frequency ranges.
Key features
- - Controls current flow in a single direction when activated
- - Reversing: N/A
- - Coil Voltage: rated coil voltage within specified parameters (110–120 V AC)
- - Auxiliary Contacts: configured as specified (2 NO / 2 NC)
- - Main Contacts: normally open per specifications
- - Poles: three, consistent with product design specifications
- - Contactor Style: IEC standards compliant
- does not imply safety guarantees beyond compliance
- - Frame Size: S00
- - Mounting Style: DIN Rail, Surface
- Mounting Position: Vertical
- - Electrical Connection: Screws
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Maximum Voltage Rating: 690V AC
- - Frequency: 50/60 Hz
- - Mechanical Durability: 30,000,000 cycles
- - Maximum Operating Temperature: 140 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Includes: Permanent Mounted Aux Contact
- Includes Auxiliary Contacts: Yes
- - Series: SIRIUS 3RT Safety Contactors
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 2.50
- Package Height: 2.00
- Package Weight: 0.60
