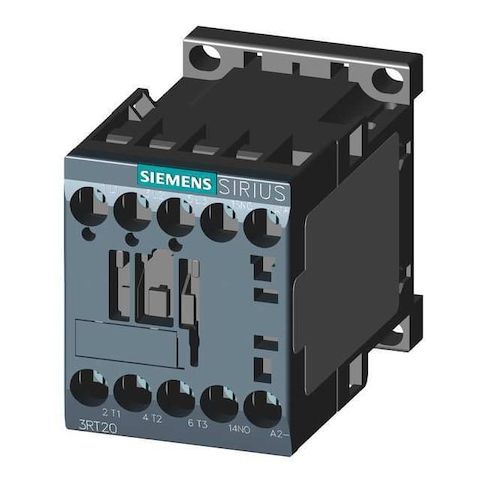

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20151BB41
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in various applications. Its non-reversing action and 3-pole design make it suitable for use in industrial control panels, machine tools, and other equipment requiring precise control. The device's compact size and DIN Rail or surface mounting capabilities allow for easy installation in a variety of settings. With its high mechanical durability and wide operating temperature range, this contactor is ideal for use in harsh industrial environments, ensuring reliable operation and extended lifespan.
Top product features:
- Non-Reversing Action
- Normally Open Auxiliary Contact
- Three-Pole Switching Capability
Top product applications:
- Industrial Automation
- Power Distribution Systems
- Machine Control and Monitoring
The Siemens IEC Magnetic Contactor is a 3-pole, coil-rated 24 V DC device used to switch power circuits. It is non-reversing with a single normally open auxiliary contact, wired via screws. The unit is part of the SIRIUS 3RT20 family (frame S00) and supports DIN Rail or surface mounting in a vertical orientation. It has no enclosure and no embedded surge suppressor and is rated for operation within the specified voltage range of 690 V AC.
Key features
- - Action: Non-Reversing
- Coil Voltage: 24 V DC
- Reversing: No
- Includes Auxiliary Contacts: Yes (1 NO)
- - Poles / Main Contacts / Aux: 3 poles
- 3 NO main contacts
- 1 NO auxiliary contact
- Frame Size: S00
- Series: SIRIUS 3RT20
- - Maximum Voltage Rating: 690 V AC
- Phase: Three
- - IP Rating: IP20
- Enclosure: No Enclosure
- Mounting Style: DIN Rail, Surface
- Mounting Position: Vertical
- Electrical Connection: Screw
- - Full Load Amps: Inductive 7 A
- Resistive 18 A
- - HP Ratings: 1/4 hp at 120V
- 3/4 hp at 240V
- 1 1/2 hp at 208V
- 2 hp at 240V
- 3 hp at 480V
- 5 hp at 575V
- - Watts Loss: 0.2 W (Current Dependent)
- 4 W (Current Independent)
- - Operating Temperatures: -13 °F to 140 °F
- - Mechanical Durability: 30,000,000 cycles
- - Dimensions: Overall Depth 2.45 in
- Overall Height 3.08 in
- Overall Width 1.97 in
- - Mounting Holes: Diameter 0.20 in
- Distances - Height 1.97 in
- Width 1.38 in
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.40
- Package Height: 1.80
- Package Weight: 0.65
