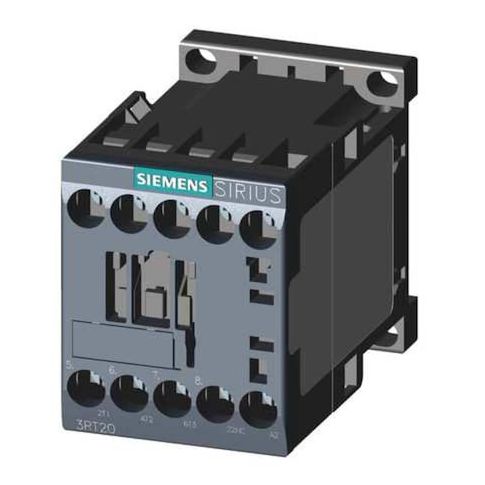

IEC Magnetic Contactor, 1NC, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AN62
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling and protecting electrical circuits in a variety of applications. Suitable for use in industrial control environments, this 3-pole, non-reversing contactor operates with a 208V AC coil and features three normally open main contacts and one auxiliary NC contact. Its compact design and durable construction make it ideal for use in control cabinets, panel boards, and other industrial settings. With a high mechanical durability of 30,000,000 cycles, this contactor provides reliable performance and long lifespan, making it a great choice for applications in manufacturing, automation, and power distribution.
Top product features:
- Operates with a 208V AC coil
- Includes three normally open main contacts and one auxiliary NC contact
- Features screw terminals for electrical connection
Top product applications:
- Industrial Automation Systems
- Control Panels for HVAC Systems
- Machine Control Systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-operated switch rated for operation within IEC-standard control environments. Operates with a 208V AC coil and includes three normally open main contacts and one auxiliary NC contact. Rated for operation at 50/60 Hz within specified voltage ranges up to 690V AC. The device belongs to the SIRIUS 3RT20 family (frame S00). It features screw terminals, DIN rail or surface mounting options, vertical orientation, and an IP20 protection rating. It is suitable for use in applications within its specified electrical ratings.
Key features
- - Action: Non-Reversing
- Reversing: No
- - Coil Voltage: 208V AC
- - Frame / Series / Code: S00
- SIRIUS 3RT20
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 1 NC (includes 1 auxiliary contact)
- - Electrical connection: Screws
- - Mounting: DIN Rail or Surface mounting options
- Mounting Position: Vertical
- Enclosure: No Enclosure
- IP Rating: IP20
- - Frequency: 50/60 Hz
- - Maximum voltage: 690V AC
- - Dimensions (approximate): Overall 3.08 in H x 1.97 in W x 2.45 in D
- - Mechanical durability: 30,000,000 cycles
- - HP ratings (representative): 1/4 hp at 120V single-phase
- 3/4 hp at 240V single-phase
- 1 1/2 hp at 208V 3-phase
- 2 hp at 240V 3-phase
- 3 hp at 480V 3-phase
- 5 hp at 600V 3-phase
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
