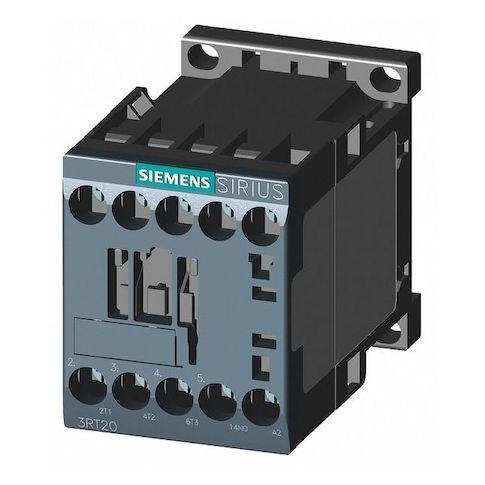

IEC Magnetic Contactor, 1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AN61

• The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-phase contactor with a coil voltage of 208V AC. It features an auxiliary contact configuration of 1NO and utilizes screw connections for electrical wiring. The compact design measures 2.87 inches in depth, 1.77 inches in height, and 1.77 inches in width, making it suitable for DIN rail or surface mounting within industrial settings where space may be limited.

  Key Features:

• - Non-Reversing Action: This feature is designed for unidirectional current flow.
• - Auxiliary Contact Form: With a form of 1NO (Normally Open), this allows for additional circuit control flexibility.
• - Coil Voltage: Rated for operation at a coil voltage of 208V AC
• check compatibility with your power supply before use.
• - Electrical Connection: Utilizes screw connections for electrical wiring
• ensure proper installation for optimal functionality.
• - Mounting Style: Suitable for mounting on either DIN rails or surfaces, according to installation requirements.
• - Horsepower Ratings: Horsepower compatibility varies with phase and voltage
• ranges from minimum 1/4 hp @ Single Phase -120V AC to maximum 5 hp @ Three Phase -600V AC based on product specifications.
• - Operating Temperature Range: Operates within a temperature range of -13 Degrees F to +140 Degrees F as per product specifications.
• - Standards Compliance: Compliant with REACH Art33 and WEEE (2012/19/EU) standards
• always refer back to these regulations when using this product.
