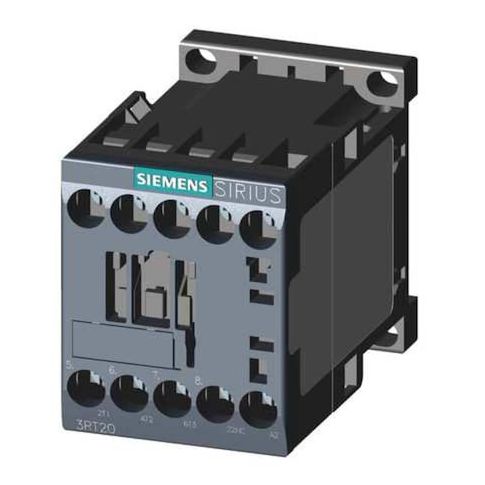

IEC Magnetic Contactor, 1NC, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AK62
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of applications, including industrial control systems, motor control, and power distribution. Its non-reversing coil-operated design provides a high level of mechanical durability, withstanding 30 million cycles, and its 110-120V AC coil ensures safe and reliable operation. Suitable for use in temperatures ranging from -13°F to 140°F, this contactor is ideal for applications in harsh environments. Its compact design and DIN Rail or surface mounting capabilities make it easy to integrate into existing systems, providing a reliable and efficient solution for a range of industrial and commercial applications.
Top product features:
- It is a three-pole, non-reversing coil-operated contactor.
- It has three normally open main contacts and one auxiliary contact (1NC).
- It supports DIN Rail or surface mounting.
Top product applications:
- Motor Control Circuits
- Power Distribution Systems
- Industrial Automation Systems
The Siemens IEC Magnetic Contactor is an IEC-standard, electrically operated switching device rated for switching within specified electrical parameters. It is a three-pole, non-reversing coil-operated contactor with a 110–120 V AC coil, part of the SIRIUS 3RT20 series (frame S00). It includes three normally open main contacts and one auxiliary contact (1NC). The contactor uses screws for terminals, supports DIN Rail or surface mounting, and does not include surge suppression features
- suitable for use within specified electrical conditions.
- Coil voltage: 110–120 V AC
- - Action: Non-Reversing
- - Phase/Poles: Three / 3 poles
- - Main contacts: 3 normally open
- - Auxiliary contact: 1 NC (1NC)
- Includes auxiliary contacts: Yes
- - Terminal connection: Screws
- - Mounting style: DIN Rail, Surface
- - Enclosure: No Enclosure
- IP20
- - Rated for operation up to 690 V AC within specified conditions
- - Frequency: 50/60 Hz
- - Frame/Series: S00
- SIRIUS 3RT20
- - Dimensions: 1.77 in W × 2.40 in H × 3.25 in D
- - Mounting holes: Diameter 0.20 in
- spacing 1.97 in (H) × 1.38 in (W)
- - Surge suppression: Does not include surge suppression features
- suitable for use within specified electrical conditions
- - Mechanical durability: 30,000,000 cycles
- - Operating temperature: designed for operation within the specified temperature range of -13 °F to 140 °F
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.50
- Package Height: 2.00
- Package Weight: 0.50
