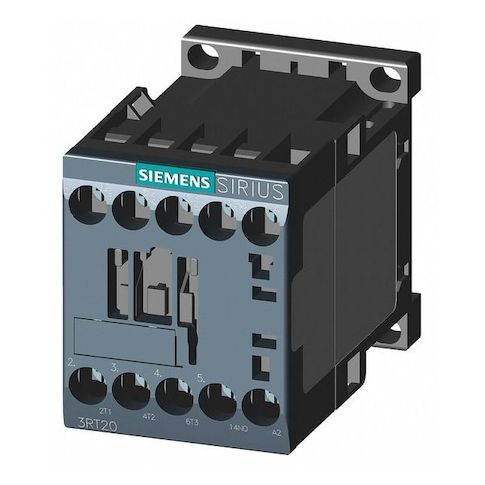

IEC Magnetic Contactor, 1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AK61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for a variety of applications. Suitable for use in industrial control systems, it can be used to control motors, pumps, and other loads. The contactor's 3-pole design and 110-120V AC coil make it easy to integrate into existing systems. Its non-reversing functionality ensures safe and reliable operation. With a maximum operating temperature of 140°F and a minimum operating temperature of -13°F, this contactor can withstand a range of environments. Ideal for use in manufacturing, processing, and other industrial settings, it provides a high level of performance and reliability.
Top product features:
- The Siemens IEC Magnetic Contactor has 3 poles for three-phase operation.
- It uses screw terminals for electrical connections.
- It is non-reversing, meaning it can only operate in one direction.
Top product applications:
- Machine Control Systems
- Industrial Automation and Control Systems
- Motor Control Circuits
The Siemens IEC Magnetic Contactor is an electrically operated switching device with 3 poles and a 1NO auxiliary contact. It is energized by a 110–120 V AC coil and rated for operation within IEC standards in the SIRIUS 3RT20 series. It uses screw terminals for connections.
- Coil Voltage: 110–120 V AC
- - Frame Size: S00
- Frame / Series / Class / Code: S00
- Series: SIRIUS 3RT20
- - Depth: 2.87 in
- Overall Depth: 3.25 in
- - Height: 1.77 in (mounting)
- Overall Height: 2.40 in
- - Width: 1.77 in (mounting)
- Overall Width: 1.95 in
- - Electrical Connection: Screws
- - Terminal Connection Type: Screw
- - Embedded Surge Suppressor: No
- - Mounting Style: DIN Rail, Surface
- Mounting Position: Vertical
- - Frequency: 50/60 Hz
- - Phase: Three
- - Poles: 3
- - Reversing: No
- - Maximum Voltage Rating: 690V AC
- - Max. Operating Watts: 3 kW (at 400V, AC-4/AC-3)
- 11 kW (at 400V, AC-1)
- - Maximum Operating Temperature: 140 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
- - Full Load Amps-Inductive / Full Load Amps-Resistive: 7 A / 18 A
- - HP @ 1 Phase - 120V: 1/4 hp
- HP @ 1 Phase - 230V: 45720
- HP @ 1 Phase - 240V: 3/4 hp
- - HP @ 3 Phase - 208V: 1 1/2 hp
- HP @ 3 Phase - 240V: 2 hp
- HP @ 3 Phase - 480V: 3 hp
- HP @ 3 Phase - 575V: 5 hp
- - Hz: 50/60
- - Series: SIRIUS 3RT20
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 1.90
- Package Weight: 0.50
