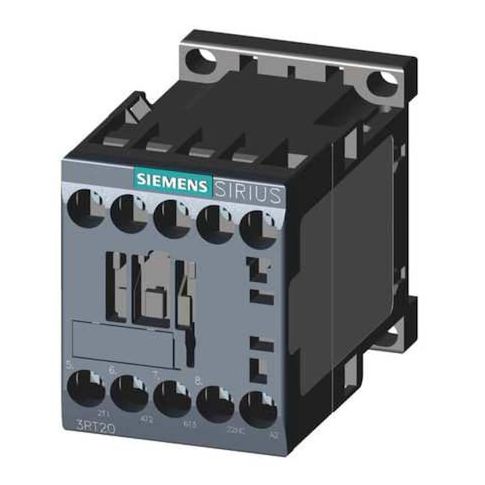

IEC Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AB02
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in IEC-compliant systems. With its 3-pole, non-reversing design and 24V AC coil, this device provides precise control and high reliability in a range of applications, including industrial automation, building management, and power distribution. Its compact size and DIN Rail or surface mounting options make it ideal for space-constrained installations. With a high mechanical durability of 30 million cycles and operating temperature range of -13°F to 140°F, this contactor is designed to withstand the demands of industrial environments, ensuring smooth and reliable operation.
Top product features:
- The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing device that uses an electromagnetic coil to open and close the main contacts.
- The unit includes one NC auxiliary contact (1NC) for additional control functionality.
- The device is designed to operate within a specified voltage and current range in IEC-compliant control systems.
Top product applications:
- Industrial Automation Systems
- Automotive Electronics
- Power Generation and Distribution Systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V AC coil rated for operation within the specified voltage and current ranges in IEC-compliant control systems. It uses an electromagnetic coil to open and close the main contacts and includes one NC auxiliary contact (1NC). This unit is part of the SIRIUS 3RT20 family (frame size S00) and is compatible with DIN Rail or surface mounting in a vertical orientation
- enclosure details as specified.
Key features:
- - Coil voltage: 24 V AC
- - Poles/contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contact: 1 NC (Includes auxiliary contacts: Yes)
- - Reversing: Non-Reversing
- - Frame/Series: SIRIUS 3RT20
- Frame Size: S00
- - Mounting: DIN Rail, Surface
- Mounting Position: Vertical
- - Electrical connection: Screws
- - Enclosure/IP: IP20
- No Enclosure
- - Maximum voltage: 690V AC
- Frequency: 50/60 Hz
- - Rated for maximum load currents of up to 7 A (inductive) and 18 A (resistive) under specified conditions
- - Rated for power levels up to specified wattages at given voltages according to standard classifications
- - Typical power dissipation within the device's operational parameters as per specifications
- - Mechanical durability: 30,000,000 cycles
- - Operating temperature: -13°F to 140°F
- - Size: Width 1.77 in
- Height 2.40 in
- Depth 2.87 in
- - Series information: Series SIRIUS 3RT20
- Phase: Three
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.00
- Package Height: 2.30
- Package Weight: 0.50
