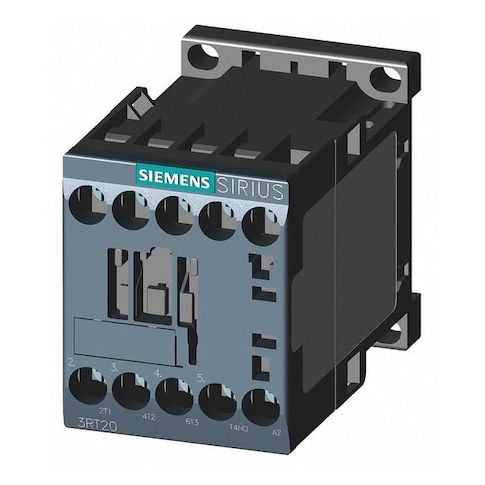

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AB01
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for various industrial applications. Designed for use in 24V AC systems, this three-pole contactor features a non-reversing configuration and 1NO auxiliary contact, making it ideal for use in control circuits. Its compact design and screw-type electrical connection enable easy installation on DIN Rail or surface mounting. With a high mechanical operating durability of up to 30 million cycles and fast response time, this contactor ensures reliable operation in temperatures ranging from -13°F to 140°F. Suitable for applications in HVAC, water treatment, and other industries, it provides a reliable and efficient solution for controlling motor loads.
Top product features:
- Operates at frequencies between 50/60 Hz.
- Handles full load amps-inductive up to 7 A and full load amps-resistive up to 18 A.
- Operates within temperature ranges from -13 Degrees F to +140 Degrees F.
Top product applications:
- Automotive applications
- Industrial control systems
- Power distribution systems
The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-pole contactor with an auxiliary contact configuration of 1NO. It operates on a coil voltage of 24V AC and has a screw-type electrical connection. The device belongs to the SIRIUS 3RT20 series and adheres to REACH Art 33 and WEEE (2012/19/EU) standards. With no enclosure, it has an IP rating of IP20. Its frame size is S00, indicating its compact design suitable for DIN Rail or surface mounting.
Key features include:
- - Operates at frequencies between 50/60 Hz.
- - Can handle full load amps-inductive up to 7 A and full load amps-resistive up to 18 A.
- - Capable of operating within temperature ranges from -13 Degrees F to +140 Degrees F.
- - Supports various horsepower ratings depending on phase and voltage: Single Phase -120V AC (1/4 hp), Single Phase -240V AC (3/4 hp), Three Phase -208V AC (1 1/2 hp), Three Phase -240V AC (2 hp), Three Phase -480V AC (3 hp) & Three Phase -600V AC (5 hp).
- - Maximum operating watts are as follows: 3 kW at both 400V, AC-4 &AC-3
- while reaching up to11 kW at400 V,AC-1.
- -The mechanical operating durability is rated for up to 30000000 cycles under standard testing conditions.
- -The response time, subject to operational variables, typically ranges from10 msec to170 msec under standard testing conditions.
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 1.80
- Package Weight: 0.50
