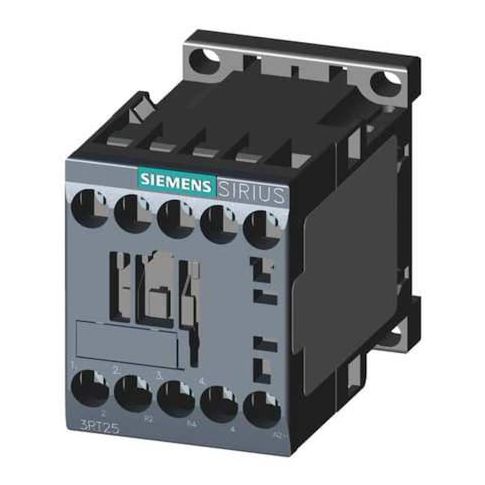

IEC Magnetic Contactor, No Auxiliary Contacts, 220V-240V AC, 4 P, Non-Reversing, Screw MPN:3RT25161AP60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for various industrial applications. Designed for non-reversing operation, this 4-pole device is suitable for controlling inductive and resistive loads in single-phase and three-phase systems. With a high mechanical operating durability of up to 30 million cycles, it ensures consistent performance in demanding environments. The contactor's compact design and DIN rail or surface mounting style make it easy to integrate into existing systems. Ideal for use in HVAC, water treatment, and manufacturing processes, this product offers a reliable and efficient solution for controlling electrical loads.
Top product features:
- The device operates on a coil voltage of 220V-240V AC.
- The contactor has a full load current capacity for both inductive (9A) and resistive loads (16A).
- The device boasts an IP20 rating for protection against touch by fingers and objects greater than 12mm.
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Units
The SIEMENS - IEC Magnetic Contactor is a non-reversing, 4-pole device with no auxiliary contacts. It operates on a coil voltage of 220V-240V AC and has an electrical connection via screws. The contactor is part of the SIRIUS 3RT25 series and comes in an S00 frame size. With its DIN rail or surface mounting style, it can be positioned vertically for installation. The device does not include any enclosure but boasts an IP20 rating for protection against touch by fingers and objects greater than 12mm.
Key features of this product include:
- - A full load current capacity for both inductive (9A) and resistive loads (16A).
- - Horsepower ratings at different phases: 1/3 hp at single phase -120V AC, 1 hp at single phase -230V/240V AC, 3 hp at three-phase -240V AC, and up to 5hp at three-phase -480V AC.
- - Maximum operating watts vary depending on conditions: reaching up to 11 kW (at 400V, AC-4), down to as low as 4 kW (at 400V, AC-3), or back up to a maximum of again11 kW (at the highest level of operation
- i.e.,400v ,AC-1)
- -The main contact configuration includes two normally closed main contacts along with two normally open ones.
- -The mechanical operating durability is rated for up to approximately thirty million cycles under standard conditions.
- -The device is designed for operation within a temperature range of -13 degrees F to140 degrees F.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 1.90
- Package Weight: 0.50
