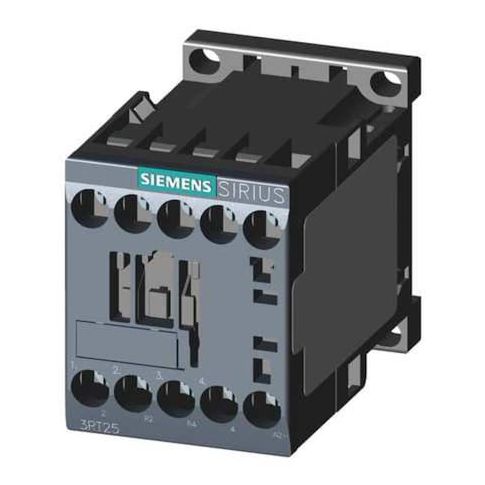

IEC Magnetic Contactor, No Auxiliary Contacts, 110V-120V AC, 4 P, Non-Reversing, Screw MPN:3RT25161AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for various industrial applications. It's designed for use in 110-120V AC environments and features a 4-pole, non-reversing coil-operated switch. This device is ideal for controlling inductive and resistive loads, with a maximum full-load current rating and horsepower rating to match. Its compact design and IP20-rated environment make it suitable for DIN Rail and surface mounting, while its 30,000,000 cycle mechanical durability ensures a long lifespan. Perfect for use in control panels, machines, and equipment, this contactor offers a reliable and efficient solution for a wide range of applications.
Top product features:
- IEC Magnetic Contactor is a 4-pole, non-reversing coil-operated switch rated for operation within specified electrical parameters.
- It is rated for coil voltage of 110-120 V AC within specified ranges.
- It has 2 normally closed and 2 normally open main contacts.
Top product applications:
- Industrial Automation Systems
- Motor Control and Protection
- Power Distribution and Control Panels
SIEMENS IEC Magnetic Contactor is a 4-pole, non-reversing coil-operated switch rated for operation within specified electrical parameters. It is rated for coil voltage of 110-120 V AC within specified ranges (110/120 V AC) and does not include auxiliary contacts. The device uses screw terminals and is compatible with DIN Rail and surface mounting methods as specified in a vertical orientation. It is part of the SIRIUS 3RT25 series with an S00 frame and IP20-rated environment
- rated for operation at 50/60 Hz frequencies.
- Action: Non-Reversing
- - Auxiliary contacts: does not include auxiliary contacts
- - Coil voltage: rated for coil voltage of 110-120 V AC within specified ranges (110/120 V AC)
- - Poles and main contacts: 4 poles
- 2 normally closed and 2 normally open
- - Frame/series: Frame S00
- Series SIRIUS 3RT25
- - Mounting: Vertical
- DIN Rail, Surface
- - Electrical connection: Screw
- - Enclosure: IP20-rated environment
- rated for operation at 50/60 Hz frequencies
- - Frequency/Phase: 50/60 Hz
- Phase: 3
- - Full-load currents: rated for maximum full-load currents of inductive and resistive loads as specified
- - HP ratings: conforms to the listed horsepower ratings under standard test conditions, but actual performance may vary based on application specifics
- - Max operating watts: capable of handling up to the listed wattages within its electrical specifications under normal operating conditions
- - Operating temperature: designed to operate within ambient temperatures ranging from -13°F to 140°F, depending on installation environment
- - Mechanical durability: 30,000,000 cycles
- - Dimensions: Overall depth 3.3 in
- height 2.4 in
- width 1.95 in
- - Mounting details: Hole diameter 0.2 in
- hole distance height 1.97 in
- width 1.38 in
- - Special features: Main Contact Configuration 2NC/2NO
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Reversing: No
- Reversing Capability: Non-Reversing
- - Includes: S00 Frame
- - Auxiliary contacts: 0
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.50
- Package Height: 2.00
- Package Weight: 0.52
