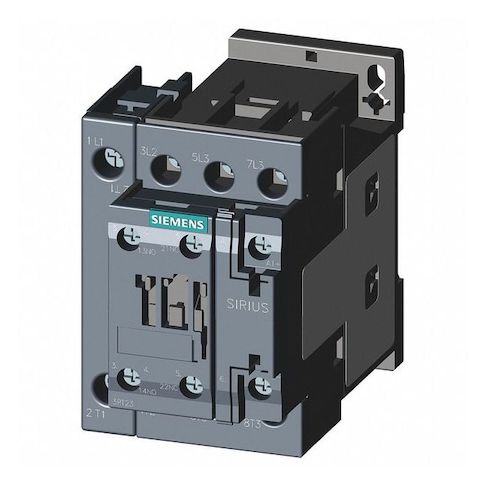

IEC Magnetic Contactor, 1NC/1NO, 220V-240V AC, 4 P, Non-Reversing, Screw MPN:3RT23271AP60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for various industrial applications. Suitable for use in control circuits, it provides a non-reversing action and is rated for operation within IEC standards. With 1 Normally Open / 1 Normally Closed auxiliary contacts and 4 normally open main contacts, this contactor offers flexibility and convenience. Its compact design and screw terminals make it easy to mount on DIN Rail or surface, while its IP20 rating ensures protection against solid particles. Ideal for use in a variety of industries, including manufacturing and automation, this contactor provides a reliable and efficient solution for controlling electrical circuits.
Top product features:
- Four-pole, non-reversing magnetic contactor with 4 normally open main contacts.
- Has auxiliary contacts: 1 Normally Open / 1 Normally Closed.
- Operates within the specified IEC standards with a coil voltage of 220-240 V AC.
Top product applications:
- Control Panel Manufacturing
- Industrial Automation Systems
- Machine Tool Control
The SIEMENS IEC Magnetic Contactor is a four-pole, non-reversing, coil-driven switch rated for operation within the specified IEC standards. It belongs to the SIRIUS 3RT23 series (frame size S0) and includes screw terminals suitable for DIN Rail or surface mounting in a vertical orientation. The unit has auxiliary contacts: 1 Normally Open / 1 Normally Closed
- Main contacts: four normally open contacts.
- Coil Voltage: 220-240 V AC
- - Action: Non-Reversing
- - Phase/Frequency: 3, 50/60 Hz
- - Poles/Main Contacts: 4 main contacts, 4 normally open
- - Auxiliary Contacts: 1 Normally Open / 1 Normally Closed
- - Frame Size / Series: S0, SIRIUS 3RT23
- - Mounting Style / Position: DIN Rail, Surface
- Vertical
- - Terminal Connection: Screw
- - Enclosure: No Enclosure (IP20)
- - IP Rating: IP20
- - Mounting Dimensions: Height 5.12 in, Width 2.36 in, Overall Width 3.04 in, Overall Depth 3.67 in
- - Mounting Hole Details: Diameter 0.19 in
- Height 2.95 in
- Width 1.38 in
- - Operating Specs: Full Load Amps Inductive 15.5 A
- Full Load Amps Resistive 42 A
- - Watts Loss: 3 W
- - Max Operating Watts: 8 kW (at 400 V, AC-4) and 8 kW (at 400 V, AC-3)
- - Reversing: No (Non-Reversing)
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 37 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 3.70
- Package Height: 3.00
- Package Weight: 1.05
