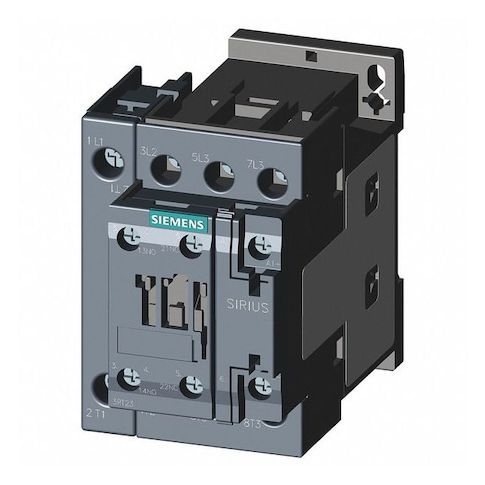

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 4 P, Non-Reversing, Screw MPN:3RT23271AK60

• The Siemens IEC Magnetic Contactor is rated for operation within IEC standards. It uses an electromagnetic coil to open or close contacts, suitable for switching motors, lighting, and other industrial loads within specified ratings. This four-pole, non-reversing unit is rated for use with 110–120 V AC supply and is part of the SIRIUS 3RT23 family, including two auxiliary contacts (1NO/1NC) as specified

• compatible with standard installation methods.

  - Action: Non-Reversing

• - Poles: 4
• - Coil Voltage: 110–120 V AC
• - Auxiliary Contacts: 2 (1NO/1NC)
• - Auxiliary Contact Form: 1NC/1NO
• - Frame Size/Code: S0
• - Series: SIRIUS 3RT23
• - Electrical Connection: compatible with screw terminal connections as specified
• proper installation required to ensure safety and compliance
• - Mounting Style: DIN Rail, Surface
• - IP Rating / Enclosure: IP20
• No Enclosure
• - Frequency: 50/60 Hz
• - Full Load Amps: Inductive 15.5 A
• Resistive 42 A
• - HP Ratings (select): 1-phase 120 V – 1 hp
• 1-phase 230/240 V – 3 hp
• 3-phase 208/240 V – 5 hp
• 3-phase 480 V – 10 hp
• 3-phase 575 V – 15 hp
• - Mechanical Durability: 10,000,000 cycles
• - Operating Temperature: -13 to 140 °F
• - Dimensions (HxWxD): 5.12 in × 3.04 in × 3.67 in
