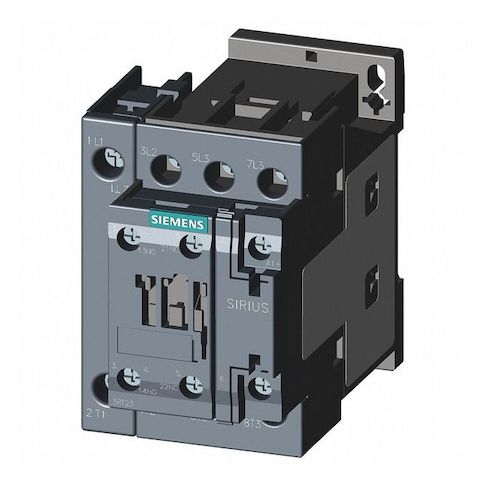

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 4 P, Non-Reversing, Screw MPN:3RT23261AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in a variety of applications. Suitable for use in IEC-standard control panels, this 4-pole, non-reversing contactor provides two auxiliary contacts and four normally open main contacts. Its compact design allows for easy mounting on DIN Rail or surface mounting using screw terminals. Ideal for use in 50/60 Hz, three-phase systems, this contactor is perfect for industrial automation, HVAC, and power distribution applications. Its high durability and long lifespan ensure reliable performance and reduced maintenance costs.
Top product features:
- The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing, electrically operated switch rated for operation within IEC-standard control panels.
- It provides two auxiliary contacts (1NO/1NC) in addition to four normally open main contacts.
- It can be mounted on DIN Rail or surface-mounted using screw terminals.
Top product applications:
- Industrial Control Panels
- Factory Automation Systems
- Power Distribution Units
The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing, electrically operated switch rated for operation within IEC-standard control panels. It uses a 110–120 V AC coil and provides two auxiliary contacts (1NO/1NC) in addition to four normally open main contacts. The device is part of the SIRIUS 3RT23 series (frame size S0) and can be mounted on DIN Rail or surface-mounted using screw terminals. It is compatible with 50/60 Hz, three-phase systems, and is provided without an embedded surge suppressor or enclosure (IP20).
- Coil voltage: 110–120 V AC
- - Action: Non-Reversing
- - Poles: 4
- - Main contacts: 4 normally open
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Frame/Series: S0
- SIRIUS 3RT23
- - Mounting: DIN Rail, Surface
- Mounting position: Vertical
- - Electrical connection: Screws
- - Enclosure: No Enclosure
- IP20
- - Frequency/Phase: 50/60 Hz
- Phase: 3
- - Full-load amps: Inductive 15.5 A
- Resistive 35 A
- - HP ratings: 1 hp @ 120V
- 3 hp @ 230V
- 3 hp @ 240V
- 5 hp @ 208V (3P)
- 5 hp @ 240V (3P)
- 10 hp @ 480V (3P)
- 15 hp @ 575V (3P)
- - Max operating temperature: 140 °F
- - Min operating temperature: -13 °F
- - Mechanical durability: 10,000,000 cycles
- - Watts loss: 2.4 W
- - Standards: REACH Art 33, WEEE
- - Terminal connection type: Screw
- - Overall dimensions: 3.05 in W x 3.6 in H x 5.2 in D
- - Width: 2.36 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 3.60
- Package Height: 3.00
- Package Weight: 1.05
