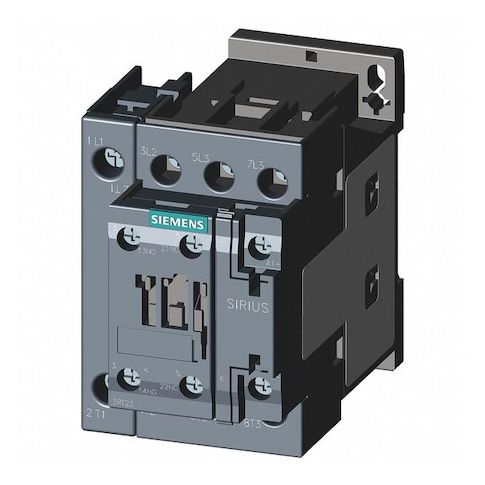

IEC Magnetic Contactor, 1NC/1NO, 220V-240V AC, 4 P, Non-Reversing, Screw MPN:3RT23251AP60

• The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts, suitable for switching motor, lighting, and load applications as specified. This non-reversing, four-pole unit operates with a 220–240 V AC coil and is part of the SIRIUS 3RT23 series (frame size S0) compatible with DIN Rail or surface mounting according to manufacturer specifications.

  - Item: IEC Magnetic Contactor

• - Contactor Style: IEC
• - Action: Non-Reversing
• - Poles: 4
• - Phase: 3
• - Coil Voltage: 220V-240V AC
• - Coil Volts: 220/240 V AC
• - Frequency: 50/60 Hz
• - IP Rating: IP20
• - Frame/Series/Code: S0
• Frame Size: S0
• Series: SIRIUS 3RT23
• - Mounting Style: DIN Rail, Surface
• - Terminal Connection Type: Screw
• - Includes Auxiliary Contacts: Yes
• - Auxiliary Contact Configuration: 1NO/1NC
• - Auxiliary Contact Form: 1NC/1NO
• - Number of Auxillary Contacts: 2
• - Number of Normally Open Main Contacts: 4
• - Max. Operating Watts: 8 kW (at 400V, AC-4)
• 8 kW (at 400V, AC-3)
• - Overall dimensions: 5.12 in (H) x 3.04 in (W) x 3.67 in (D)
• - Mounting Hole Diameter: 0.19 in
• - Mounting Hole Distance - Height: 2.95 in
• - Mounting Hole Distance - Width: 1.38 in
• - Enclosure NEMA Rating: No Enclosure
• - Standards: REACH Art 33, WEEE (2012/19/EU)
