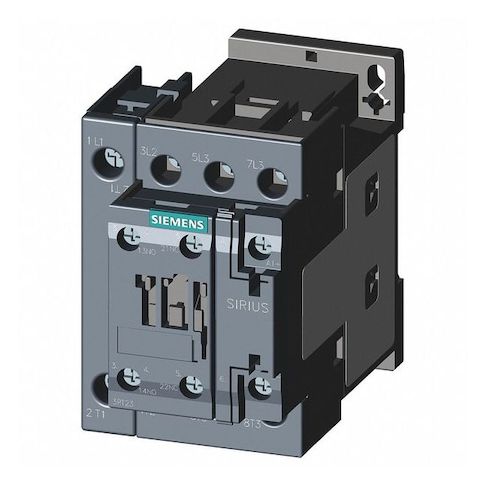

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 4 P, Non-Reversing, Screw MPN:3RT23251AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in a variety of applications. Its 4-pole non-reversing design and screw terminals make it easy to integrate into existing control panels, while its 110-120V AC coil ensures safe and reliable operation. Suitable for use in indoor control panel environments, this contactor is ideal for applications such as industrial machinery, HVAC systems, and commercial equipment. With its high mechanical durability and wide operating temperature range, it can withstand the demands of heavy-duty use, providing a long and trouble-free service life.
Top product features:
- Operates within a specified IEC standard
- Provides 4 poles and non-reversing operation
- Includes auxiliary contacts (2 total: 1NO/1NC)
Top product applications:
- Industrial Control Panel
- Automotive Manufacturing
- Power Generation
SIEMENS IEC Magnetic Contactor is an IEC-style, electrically operated switching device rated for operation within the specified IEC standards. Providing 4 poles and non-reversing operation, it uses a 110–120 V AC coil to control main contacts and includes auxiliary contacts (2 total: 1NO/1NC). The unit uses screw terminals for wiring, supports DIN Rail or surface mounting, and belongs to the S0 frame within the SIRIUS 3RT23 series. It has IP20 ingress protection rating appropriate for indoor control panel environments.
- Action: Non-Reversing
- - Poles / Main contacts: 4 poles
- 4 normally open main contacts
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Coil voltage: 110–120 V AC (50/60 Hz)
- - Termination: Screws
- - Frame / Series: S0
- SIRIUS 3RT23
- - Enclosure / IP: IP20 ingress protection rating appropriate for indoor control panel environments
- - Mounting: DIN Rail, Surface
- Vertical orientation
- - Electrical ratings: Full Load Amps Inductive 15.5 A
- Resistive 30 A
- - Max watts: 8 kW at 400 V AC-3/AC-4
- - Mechanical durability: 10,000,000 cycles
- - Operating temperature: -13°F to 140°F
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Dimensions: Width 2.36 in
- Depth 3.82 in
- Height 5.10 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 3.60
- Package Height: 3.10
- Package Weight: 1.05
