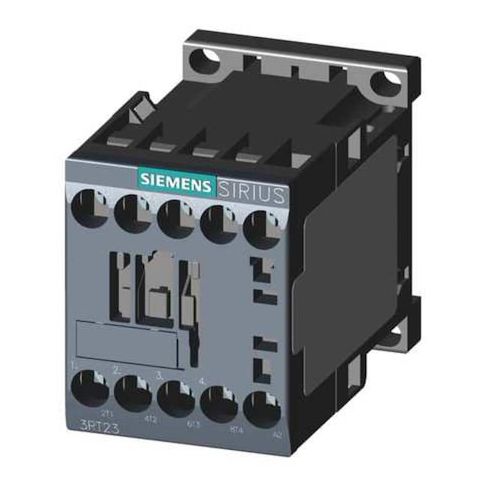

IEC Magnetic Contactor, 4NO, 220V-240V AC, 4 P, Non-Reversing, Screw MPN:3RT23171AP60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling three-phase power supplies in various applications. Designed for use in industrial settings, it provides a non-reversing action and four normally open main contacts, making it ideal for use in motor control and other applications requiring a high level of reliability. With a compact design and easy mounting options, this contactor is perfect for use in control panels, machines, and other equipment. Its high mechanical durability and long lifespan make it a cost-effective solution for applications requiring frequent switching.
Top product features:
- Four normally open main contacts provide reliable switching functionality.
- The unit has a non-reversing action, preventing accidental reversals of motor direction.
- The contactor is rated for a maximum load capacity of 4 kW (AC-4) and 6 kW (AC-, enabling efficient operation with various power supplies.
Top product applications:
- Industrial Automation Systems
- Electrical Panel Controls
- Motor Control Centers
The Siemens IEC Magnetic Contactor is a 4-pole, 4NO IEC magnetic contactor with a non-reversing action and a coil rated for 220–240 V AC. It uses screw terminals and has no embedded surge suppressor
- has an enclosure rating of IP20 as per standard specifications. The unit is part of the SIRIUS 3RT23 series, with frame size S00, mounting on a DIN rail or surface in a vertical orientation. It provides four normally open main contacts (0 normally closed) and four auxiliary normally open contacts, compatible with three-phase power supplies at 50/60 Hz frequency. Rated for maximum load capacities of up to 4 kW (AC-4) and 6 kW (AC-3) according to specifications, with a power loss of 1.6 W. It operates within the specified temperature range of -13°F to 140°F, and it is rated for a mechanical lifespan of up to 30 million cycles. Overall dimensions are width 1.77 in, depth 2.45 in, height 3.08 in.
- Action: Non-Reversing
- - Poles: 4
- - Main Contacts: 4 NO, 0 NC
- - Auxiliary Contacts: 4 NO
- - Coil Voltage: 220–240 V AC
- - Frame Size / Series: S00 / SIRIUS 3RT23
- - Contactor Style: IEC
- - Reversing: No
- - Frequency: 50/60 Hz
- - Phase: 3
- - Electrical Connection: Screw
- - Mounting Style: DIN Rail, Surface
- Mounting Position: Vertical
- - IP Rating / Enclosure: IP20
- - Includes Auxiliary Contacts: Yes
- - Full Load Amps: Inductive 12 A
- Resistive 20 A
- - HP Ratings: 1/3 hp @ 120 V
- 1 hp @ 230–240 V
- 2 hp @ 208 V
- 3 hp @ 240 V
- 5 hp @ 480 V
- 7 1/2 hp @ 575 V
- - Max Operating Watts: 4 kW (AC-4) / 6 kW (AC-3)
- - Watts Loss: 1.6 W
- - Operating Temperature: -13°F to 140°F
- - Mechanical Durability: 30,000,000 cycles
- - Mounting Holes: Diameter 0.2 in
- Distance (Height) 1.97 in
- Distance (Width) 1.38 in
- - Overall Dimensions: Width 1.77 in
- Height 3.08 in
- Depth 2.45 in
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.55
