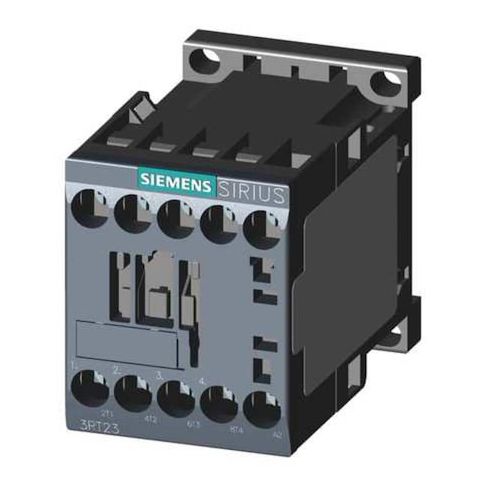

IEC Magnetic Contactor, 4NO, 110V-120V AC, 4 P, Non-Reversing, Screw MPN:3RT23171AK60

• Siemens IEC Magnetic Contactor, 4NO, 110–120 V AC coil, 4-pole, non-reversing.

  This IEC-standard, electrically operated switching device rated for controlling power circuits with a 4-pole main contact arrangement and four normally open auxiliary contacts.

  It features screw terminals, supports DIN Rail or surface mounting. The enclosure options include No Enclosure

• rated for use in environments with IP20 protection level for 3-phase applications as part of the SIRIUS 3RT23 series (frame size S00).

  - Coil Voltage: Rated for operation within the specified voltage range of 110–120 V AC.

• - Action / Reversing: Non-reversing configuration.
• - Poles / Main Contacts: 4 poles, 4 normally open main contacts
• 0 normally closed
• - Auxiliary Contacts: 4 NO (auxiliary)
• - Frame Size / Series: S00, SIRIUS 3RT23
• - Phase: 3
• Frequency: 50/60 Hz
• - Full Load Amps: Inductive 12 A
• Resistive 20 A
• - Max Operating Power Ratings: Up to approximately 4 kW at 400 V AC under specific conditions
• actual performance may vary depending on application parameters.
• - IP Rating / Enclosure: IP20
• No Enclosure
• - Terminal Connection: Screw
• - Mounting Style: DIN Rail, Surface
• - Mounting Details: Mounting hole diameter 0.20 in
• Height 1.97 in
• Width 1.38 in
• Mounting Position: Vertical
• - Overall Dimensions: Overall Dimensions are provided but should be verified against installation requirements before use.
• - Operating Temp: Operating temperature range includes typical ambient conditions but should be confirmed suitable for specific environments prior to deployment.
• - Mechanical Durability: 30,000,000 cycles
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Includes Auxiliary Contacts: Yes
• - Item: IEC Magnetic Contactor
• - Reversing: No
• - Width: 1.77 in
