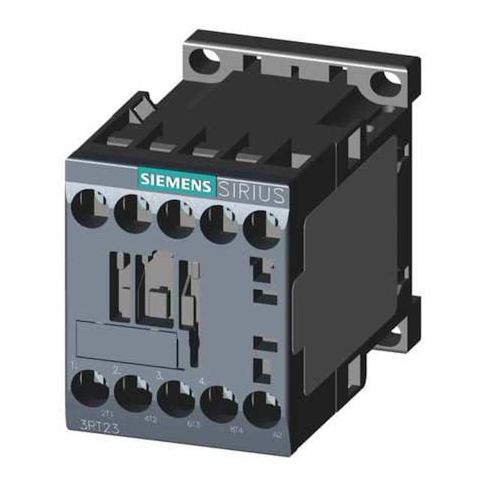

IEC Magnetic Contactor, 4NO, 220V-240V AC, 4 P, Non-Reversing, Screw MPN:3RT23161AP60

• The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing electromagnetic switch used to control power circuits in industrial control panels. It is rated for operation within the specified voltage and frequency ranges, features screw terminals, and is part of the SIRIUS 3RT23 family (frame size S00). This three-phase device contains the specified number of contacts

• mounting options are as per product specifications.

  Key features

• - Action: Non-Reversing
• Reversing: No
• - Coil Voltage: 220–240 V AC
• - Poles/Main Contacts: 4 poles
• 4 NO main contacts (0 NC)
• - Auxiliary Contacts: 4 NO
• - Frame / Series: S00
• SIRIUS 3RT23
• - Frequency: 50/60 Hz
• Phase: 3
• - IP Rating / Enclosure: IP20
• does not include an enclosure (if applicable)
• - Mounting: DIN Rail, Surface
• Mounting Position: Vertical
• - Termination: Screws
• - Embedded Surge Suppressor: No
• - Mechanical Durability: 30,000,000 cycles
• - Full Load Amps: Inductive 9 A
• Resistive 18 A
• - Power rating: rated for operation within the specified power and voltage ratings
• - Dimensions: Depth 3.3 in
• Height 1.95 in
• Width 2.40 in
