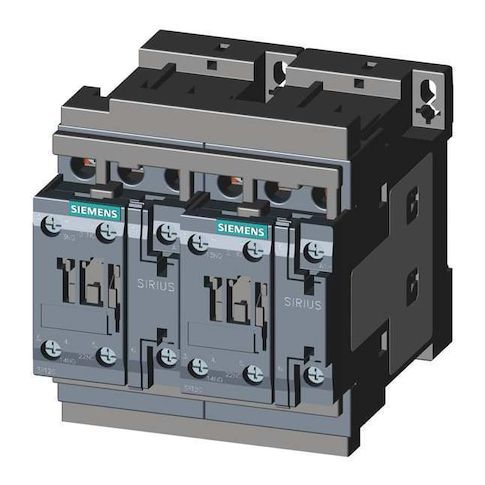

IEC Magnetic Contactor, 2NC/2NO, 220V-240V AC, 3 P, Reversing, Screw MPN:3RA23288XB301AP6

• The Siemens IEC Magnetic Contactor is an electrically operated switching device designed to control power circuits in accordance with IEC standards. It is a reversing, three-pole contactor with a coil voltage of 220–240 V AC. The unit belongs to the SIRIUS 3RA23 series and uses screw-type terminals. Mounting options include DIN Rail or Surface, with a vertical orientation, and the enclosure is listed as No Enclosure with an IP20 rating. It includes a mechanical interlock and auxiliary contacts.

  Key features:

  • - Reversing function: rated for controlling directional switching as per specifications
  • - Poles: 3
  • - Coil Voltage: 220–240 V AC
  • - Auxiliary Contacts: 3 total (configuration 2NO/2NC
  • form 2NC/2NO)
  • - Includes: Mechanical Interlock
  • Auxiliary Contacts: Yes
  • - Frame Size: S0
  • Series: SIRIUS 3RA23
  • - Mounting Style: DIN Rail, Surface
  • Mounting Position: Vertical
  • - Terminal Connection Type: Screw
  • - IP Rating: IP20
  • Enclosure: No Enclosure
  • - Maximum Voltage Rating: 690 V AC
  • Frequency: 50/60 Hz
  • - Phase: Three
  • - Reversing: Yes
  • - Full Load Current: Inductive 38 A, Resistive 50 A
  • - Operating Temperature: -13°F to 140°F
  • - Mechanical Durability: 10,000,000 cycles
  • - Standards: REACH Art 33, WEEE (2012/19/EU)
