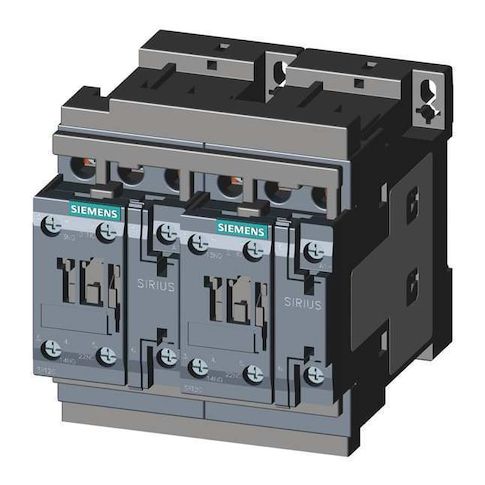

IEC Magnetic Contactor, 2NC/2NO, 220V-240V AC, 3 P, Reversing, Screw MPN:3RA23278XB301AP6
Free Shipping
In Stock
This Siemens IEC Magnetic Contactor is a reliable and efficient solution for reversing motor connections in a variety of applications, including industrial automation, robotics, and HVAC systems. Its 3-pole design and 220-240V AC coil voltage make it suitable for use in a range of voltage environments. The 2NO/2NC auxiliary contacts provide additional control and monitoring capabilities, while the screw terminals ensure easy and secure connections. With a compact design and IP20 rating, this contactor is perfect for use in a variety of settings, from manufacturing facilities to commercial buildings. It's also easy to install and maintain.
Top product features:
- It has 3 normally open and 0 normally closed main contacts.
- It has 2NO/2NC auxiliary contacts.
- It is a reversing-type device, intended for reversing motor connections as per installation instructions.
Top product applications:
- Control Panel for Industrial Machinery
- Reversing Motor Control Circuits
- Motor Starters for 220-240V AC Applications
This Siemens IEC Magnetic Contactor is a 3-pole, reversing-type device rated for switching within the specified voltage and current ranges according to IEC standards. It utilizes an electromagnetic coil compatible with specified voltages for contact operation. The unit features 2NO/2NC auxiliary contacts, is part of the SIRIUS 3RA23 family, and uses screw terminals with no embedded surge suppressor. It is supplied without enclosure
- suitable mounting options available.
Key features:
- - Poles: 3
- - Action: Reversing (intended for reversing motor connections as per installation instructions)
- - Coil Voltage: 220-240 V AC
- - Auxiliary Contacts: 2NO/2NC (3 auxiliary contacts total)
- - Main Contacts: 3 normally open, 0 normally closed
- - Frame Size / Series: S0 / SIRIUS 3RA23
- - Terminal Connection: Screw
- - Mounting Style / Position: DIN Rail, Surface
- Vertical
- - Enclosure: Supplied without enclosure
- suitable mounting options available
- - IP Rating: IP20
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 32 A
- Resistive 50 A
- - Overall Dimensions: 4.41 in (H) x 3.82 in (W) x 4.3 in (D)
- - Embedded Surge Suppressor: No
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.80
- Package Height: 4.50
- Package Weight: 2.05
