IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Reversing, Screw MPN:3RA23278XB301AK6
Free Shipping
In Stock

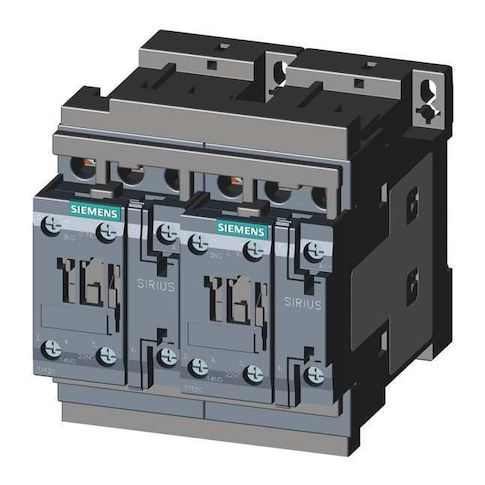

The Siemens IEC Magnetic Contactor is a versatile and reliable electric switch designed for applications compliant with IEC standards. Suitable for use in a variety of industries, including manufacturing, logistics, and infrastructure, this reversing-type contactor provides efficient control and switching capabilities. Its 3-pole design and 110-120V AC coil ensure smooth operation, while the included auxiliary contacts and mechanical interlock mechanism enhance functionality. With a compact and DIN Rail-compatible design, this contactor is ideal for space-constrained installations, offering a reliable and efficient solution for applications requiring precise control and switching.
Top product features:
- The Siemens IEC Magnetic Contactor has a reversing action, allowing it to switch between two states.
- It contains three normally open main contacts and three auxiliary contacts.
- The unit is IP20-rated for protection against solid objects and fingers, ensuring safe operation in various environments.
Top product applications:
- Industrial control systems
- Automotive electronics
- Power generation and distribution
The Siemens IEC Magnetic Contactor is a 3-pole, reversing-type electric switch intended for use in applications compliant with IEC standards. It operates from a 110–120 V AC coil with screw terminals and contains three normally open main contacts
- no normally closed contacts included. Auxiliary contacts are provided as 2NO/2NC (3 auxiliary contacts in total) and a 2NC/2NO form. The unit is part of the SIRIUS 3RA23 series (frame size S0) and compatible with DIN Rail or surface mounting configurations
- enclosure not included
- IP20-rated protection. It is rated for operation within the specified voltage and frequency ranges and includes a mechanical interlock mechanism (functionality may vary depending on application).
- Action: Reversing
- - Poles: 3
- - Coil Voltage: 110-120 V AC
- - Frequency: 50/60 Hz
- - Phase: Three
- - Contactor Style: IEC
- - Series: SIRIUS 3RA23
- - Frame Size: S0
- - Mounting Style: DIN Rail, Surface
- - Terminal Connection Type: Screw
- - Enclosure: No Enclosure
- - IP Rating: IP20
- - Includes: a mechanical interlock mechanism (functionality may vary depending on application)
- - Includes Auxiliary Contacts: Yes
- - Aux. Contact Configuration: 2NO/2NC
- - Auxiliary Contact Form: 2NC/2NO
- - Number of Auxillary Contacts: 3
- - Number of Normally Open Main Contacts: 3
- - Number of Normally Closed Main Contacts: 0
- - Number of Poles: 3
- - Maximum Voltage Rating: 690V AC
- - Full Load Amps - Inductive: 32 A
- - Full Load Amps - Resistive: 50 A
- - Height: 4.41 in
- - Width: 3.82 in
- - Depth: 4.3 in
- - Maximum Operating Temperature: 140 Degrees F
- - Minimum Operating Temperature: -13 Degrees F
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.20
- Package Height: 3.80
- Package Weight: 2.05
