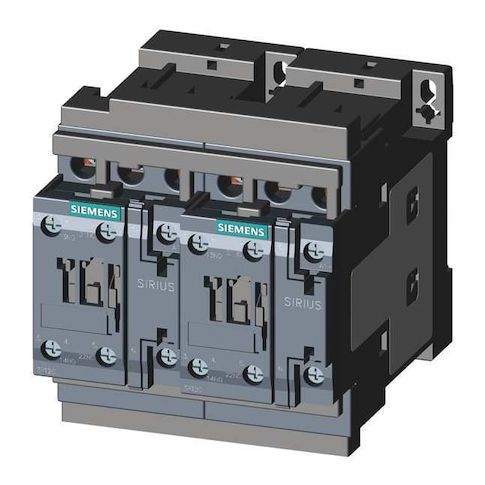

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Reversing, Screw MPN:3RA23268XB301BB4
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a wide range of applications, from industrial automation to commercial and residential settings. Its 3-pole, reversing design enables easy control of motors, lighting, and other loads, while its compact, modular IEC configuration ensures standardized sizing and interchangeability in control panels. With a 24V DC coil and screw terminal connections, this contactor is easy to integrate and maintain, making it an ideal choice for applications that require high reliability and flexibility.
Top product features:
- The Siemens IEC Magnetic Contactor has the following product features:
- It is a 3-pole, reversing, coil-operated switch designed to control power circuits in accordance with IEC standards.
- It uses a 24 V DC coil to open or close contacts, enabling control of motors, lighting, and other loads in compact, modular IEC configurations.
Top product applications:
- Motor control
- Lighting control
- Control of power circuits in accordance with IEC standards
The Siemens IEC Magnetic Contactor is a 3-pole, reversing, coil-operated switch designed to control power circuits in accordance with IEC standards. It uses a 24 V DC coil to open or close contacts, enabling control of motors, lighting, and other loads in compact, modular IEC configurations suitable for standardized sizing and interchangeability in control panels.
- Action: Reversing
- - Poles: 3
- - Coil Voltage: 24 V DC
- - Contactor Style: IEC
- - Frame Size: S0
- - Series: SIRIUS 3RA23
- - Mounting Style: DIN Rail, Surface
- - Terminal Connection Type: Screw
- - Enclosure: The product does not include an enclosure. It is rated for operation within the specified environmental conditions.
- - Auxiliary Contact Configuration: The auxiliary contacts are configured as specified
- performance may vary based on application.
- - Auxiliary Contact Form: The auxiliary contacts are configured as specified
- performance may vary based on application.
- - Includes: Includes mechanical interlock
- - Includes Auxiliary Contacts: Yes
- - Maximum Voltage Rating: 690V AC
- - Height: 6.78 in
- Width: 4.34 in
- Depth: 4.93 in
- - Reversing Capability: Reversing
- - Main Contacts (Normally Open): 3
- Normally Closed Main Contacts: 0
- - Phase: Three
- - Maximum Operating Temperature: The device is rated for operation within the specified temperature range.
- - Minimum Operating Temperature: The device is rated for operation within the specified temperature range.
- - Mechanical Operating Durability: This indicates a durability rating but does not guarantee performance over time under all conditions.
- - IP Rating: Rated for use in environments conforming to this ingress protection level.
- - Standards: Complies with applicable standards and regulations.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 24 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 5.00
- Package Height: 6.70
- Package Weight: 2.90
