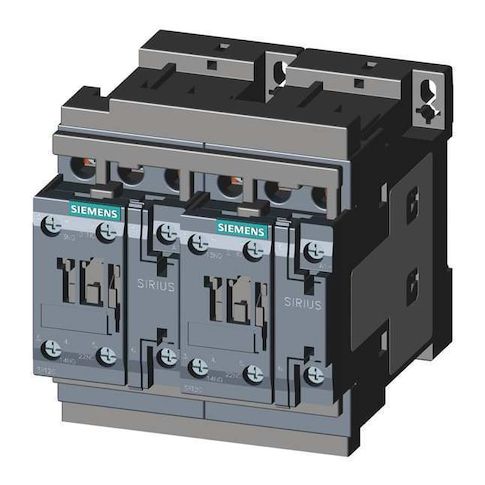

IEC Magnetic Contactor, 2NC/2NO, 220V-240V AC, 3 P, Reversing, Screw MPN:3RA23268XB301AP6

• The Siemens IEC Magnetic Contactor is a three-pole reversing magnetic switch used to control power circuits in IEC-standard control systems. It operates with a 220–240 V AC coil and is designed for three-phase service at 50/60 Hz. The device belongs to the SIRIUS 3RA23 series (frame size S0) and uses screw terminals with vertical mounting compatible with DIN Rail or surface mounting. Includes auxiliary contacts with specified configurations

• no guarantees regarding contact performance under all conditions. The design is rated for operation within the specified voltage range of 690 V AC and is rated for continuous operation at currents up to 25 A (inductive) and 40 A (resistive) under specified conditions. It does not include surge suppression features. It carries IP20 protection and no NEMA enclosure, and includes a mechanical interlock.

  - Action: Reversing

• - Poles / Main Contacts: 3 poles
• 3 Normally Open main contacts
• 0 Normally Closed main contacts
• - Auxiliary Contacts: includes auxiliary contacts with specified configurations
• no guarantees regarding contact performance under all conditions
• - Coil Voltage: 220–240 V AC
• - Frequency: 50/60 Hz
• - Frame / Series: Frame Size S0
• Series SIRIUS 3RA23
• - Mounting: Vertical
• Mounting Style: DIN Rail, Surface
• - Terminal Connection: Screw
• - Enclosure: No Enclosure
• IP Rating: IP20
• - Maximum Voltage Rating: rated for operation within the specified voltage range of 690 V AC
• - Full-Load Current: rated for continuous operation at currents up to 25 A (inductive) and 40 A (resistive) under specified conditions
• - Phase: Three
• - Reversing Capability: capable of reversing operation when properly installed according to instructions
• - Operating Temperatures: -13°F to 140°F
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Dimensions: Width 3.54 in
• Height 4.41 in
• Overall Depth 4.3 in
• - Included: Mechanical Interlock
