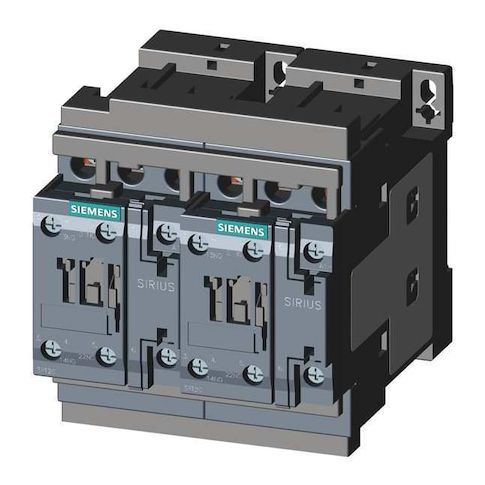

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Reversing, Screw MPN:3RA23258XB301BB4
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for industrial applications, offering a reversing type, three-phase design that operates with a coil voltage of 24V DC. Suitable for vertical mounting on DIN Rails or surfaces, this contactor is ideal for use in systems requiring high inductive and resistive current handling, up to 16 A and 40 A respectively. Its compact size and screw type terminals make it easy to integrate into existing infrastructure, while its compliance with REACH and WEEE standards ensures a safe and environmentally friendly operation. Perfect for a range of applications, including motor control and power management.
Top product features:
- Reversing type, allowing for bidirectional control of inductive currents up to 16 A and resistive currents up to 40 A.
- 2NC/2NO auxiliary contact configuration, providing reliable and efficient switching of electrical circuits.
- Screw type terminals for making electrical connections, facilitating easy and secure installation and maintenance.
Top product applications:
- Industrial Automation Systems
- Motor Control Centers
- Power Distribution Units
The SIEMENS - IEC Magnetic Contactor is a reversing type, three-phase contactor designed for industrial applications. It operates with a coil voltage of 24V DC and has an auxiliary contact configuration of 2NO/2NC. The device is rated for operation with inductive currents up to 16 A and resistive currents up to 40 A. Its frame size is S0, which indicates its physical dimensions and power handling capacity. This magnetic contactor does not include an embedded surge suppressor or any NEMA enclosure.
Key features based on attributes include:
- Mounting Style: The device is suitable for vertical mounting on DIN Rails or surfaces.
- - Mechanical Interlock: Included as part of the package, intended for use in improving operational efficiency.
- - Operating Temperature Range: Operational temperature range is between -13 Degrees F and 140 Degrees F.
- - Horsepower Compatibility: Compatible with various horsepower ratings within specified voltage ranges (1 hp @ Single Phase -120V AC
- 3 hp @ Single Phase -240V AC
- etc.)
- - Terminal Connection Type: Screw type terminals are provided for making electrical connections.
- - Standards Compliance: Complies with REACH Art 33 and WEEE (2012/19/EU) standards.
- - Dimensions: Has an overall depth of 6 inches, height of 6.8 inches, and width of 8.85 inches.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 24 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 4.90
- Package Height: 4.40
- Package Weight: 2.95
