IEC Magnetic Contactor, 2NC/2NO, 220V-240V AC, 3 P, Reversing, Screw MPN:3RA23258XB301AP6
Free Shipping
In Stock

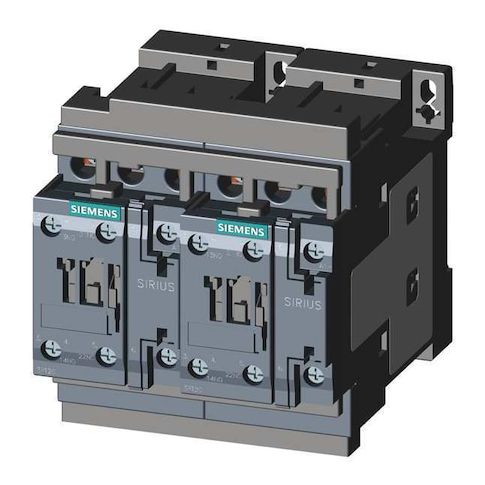

The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in accordance with IEC standards. Its reversing action and three-pole design make it ideal for applications requiring high switching capacity and flexibility. With a coil voltage of 220-240 V AC, this contactor is suitable for a wide range of industrial and commercial settings. Its compact design and screw terminal connection make it easy to install and integrate into existing systems. Perfect for use in control panels, machinery, and equipment, this contactor provides reliable and efficient switching performance, ensuring smooth operation and extending equipment lifespan.
Top product features:
- Reversing action allows for bidirectional control of the circuit
- Three-pole design enables control of three-phase power circuits
- 220-240V AC coil voltage allows for operation within a standard voltage range
Top product applications:
- Industrial Automation
- Control Panels
- Machine Tools
The item is a Siemens IEC Magnetic Contactor, a three-pole, electrically operated switch used to control power circuits in accordance with IEC standards. It features a reversing action and a coil voltage of 220–240 V AC, and it is rated for connection via screw terminals. The unit is part of the SIRIUS 3RA23 series and compatible with DIN Rail or surface mounting in a vertical orientation
- IP20 rated.
- Action: Reversing
- - Poles: 3
- - Coil Voltage: 220–240 V AC
- - Coil Volts: 220/240 V AC
- - Auxiliary Contacts: 3 (2NO/2NC)
- - Auxiliary Contact Configuration: 2NO/2NC
- - Main Contacts: 3 NO, 0 NC
- - Includes: Mechanical Interlock
- - Includes Auxiliary Contacts: Yes
- - Series: SIRIUS 3RA23
- - Frame Size: S0
- - Frame / Size: S0
- - Mounting Style: DIN Rail, Surface
- - Mounting Position: Vertical
- - Terminal Connection Type: Screw
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Phase: Three
- - Maximum Operating Temperature: 140 °F
- - Minimum Operating Temperature: -13 °F
- - Mechanical Operating Durability: 10,000,000 cycles
- - Overall Width: 3.82 in
- - Overall Height: 4.41 in
- - Overall Depth: 4.30 in
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.80
- Package Height: 4.50
- Package Weight: 1.95
