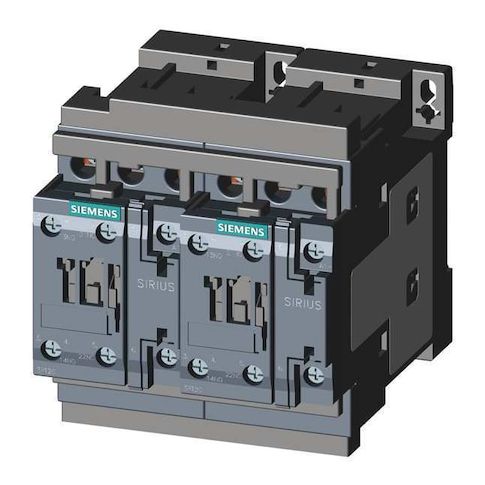

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Reversing, Screw MPN:3RA23258XB301AK6
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in a variety of applications, including industrial automation and control systems. With its 3-pole reversing action, it can change the current flow direction, making it suitable for use in applications where motor direction needs to be reversed. The contactor's high mechanical durability and long lifespan ensure reliable operation, while its compact design and screw terminal connections make it easy to install and maintain. Suitable for use in a range of industries, including manufacturing, HVAC, and power generation.
Top product features:
- The product has a reversing action, allowing it to change the current flow direction within electrical specifications.
- It includes auxiliary contacts, providing additional functionality and control.
- The product is designed for vertical mounting via DIN Rail or surface mounting methods, offering flexibility in installation.
Top product applications:
- Motor control circuits
- Industrial automation systems
- HVAC control systems
The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards. This 3-pole reversing contactor is compatible with coil voltages of 110–120 V AC within specified ranges and is part of the SIRIUS 3RA23 family (frame size S0). It includes auxiliary contacts and a mechanical interlock, uses screw terminals, and is rated for an ingress protection level of IP20 according to IEC standards with no enclosure. It is suitable for vertical mounting via DIN Rail or surface mounting methods.
- Action: Reversing
- intended to change the current flow direction within electrical specifications.
- - Auxiliary contacts: 3 total
- Configuration: 2NO/2NC
- Form: 2NC/2NO
- Includes: auxiliary contacts as specified
- - Coil voltage: 110–120 V AC
- - Contactor style/series: IEC
- Frame Size: S0
- Series: SIRIUS 3RA23
- - Poles/Main contacts: 3 poles
- 3 normally open main contacts
- 0 normally closed main contacts
- - Frequency: 50/60 Hz
- - Maximum voltage rating: 690 V AC
- - Embedded surge suppressor: No
- - Enclosure: No
- Ingress protection: IP20 according to IEC standards
- - Mounting: Vertical
- Mounting style: suitable for vertical mounting via DIN Rail or surface mounting methods
- - Terminal connection: Screw
- - Dimensions (overall): Width 3.85 in
- Height 4.55 in
- Depth 4.35 in
- - Operating temperature: -13 °F to 140 °F
- - Phase: Three
- - Mechanical durability: mechanical durability tested up to approximately 10 million cycles under specified conditions
- - Includes: mechanical interlock
- auxiliary contacts as specified
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.30
- Package Height: 3.80
- Package Weight: 2.00
