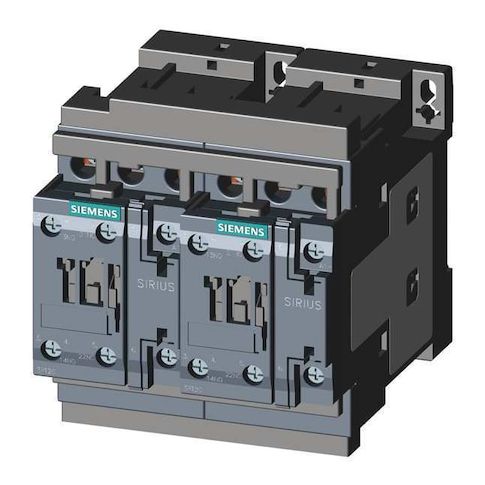

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Reversing, Screw MPN:3RA23248XB301BB4

• The Siemens IEC Magnetic Contactor is a three-pole, reversing, electrically operated switch rated for operation within IEC standards. It features a 24 V DC coil, 2NO/2NC auxiliary contacts, and is part of the SIRIUS 3RA23 series with frame size S0. The device uses screw terminals, supports DIN Rail or surface mounting, and is specified with no enclosure and an IP20 rating. It is rated for use at voltages up to 690 V AC and has a specified mechanical lifespan: 10,000,000 cycles (subject to proper installation and use). It operates within the temperature range of -13 °F to 140 °F (see product specifications).

  Key features

• - Coil voltage: 24 V DC
• - Action and reversing: Reversing
• Reversing capability = Reversing
• - Poles/phase: 3 poles
• Three-phase
• - Auxiliary contacts: 3 total (2NO/2NC configuration
• 2NC/2NO form)
• 3 normally open main contacts
• 0 normally closed main contacts
• - Mounting and enclosure: Vertical mounting
• DIN Rail or Surface mounting
• No enclosure
• IP20
• - Series/frame: Series SIRIUS 3RA23
• Frame Size S0
• - Electrical ratings: Maximum voltage rating 690 V AC
• Full Load Amps: Inductive 12 A
• Resistive 40 A
• - Mechanical/thermal: Height 5.5 in
• Width 5.5 in
• Depth 5.6 in
• Maximum operating temperature 140 °F
• Minimum operating temperature -13 °F
• - Compliance and accessories: Includes Mechanical Interlock
• Includes Auxiliary Contacts: Yes
• Terminal connection type: Screw
• - Standards: REACH Art 33, WEEE (2012/19/EU)
