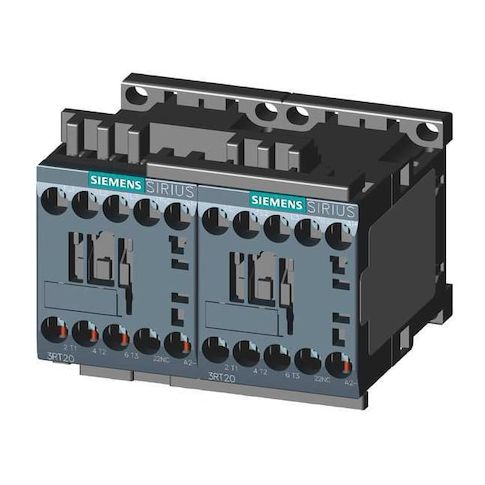

The SIEMENS - IEC Magnetic Contactor is a reversing type contactor with an auxiliary contact configuration of 2NC. It operates on a coil voltage within the specified ranges of 110V-120V AC and has a frequency of 50/60 Hz. The product, which belongs to the SIRIUS 3RA23 series, comes in an S00 frame size and does not include an enclosure. Its mounting style allows for DIN Rail or surface installation, and it's designed for vertical positioning. The unit includes a mechanical interlock feature designed to prevent simultaneous operation of forward and reverse commands.
Key Features:
- Reversing action: This feature allows the direction of motor rotation to be changed.
- Auxiliary Contact Form: With its 2NC form, this device can control additional circuits.
- Coil Voltage: Rated for operation within the specified voltage ranges of 110V-120V AC.
- Mounting Style: Can be mounted on either DIN Rails or surfaces providing flexibility during installation.
- Mechanical Interlock Included: Includes a mechanical interlock feature designed to prevent simultaneous operation of forward and reverse commands.
- Horsepower Ratings: Horsepower ratings are provided for various configurations, ranging from 1/2 hp @ Single Phase - 120V AC up to10 hp @ Three Phase -600V AC. Actual performance may vary based on specific use conditions.
- Standards Compliance: Complies with REACH Art33 & WEEE (2012/19/EU) standards as per manufacturer's information.
