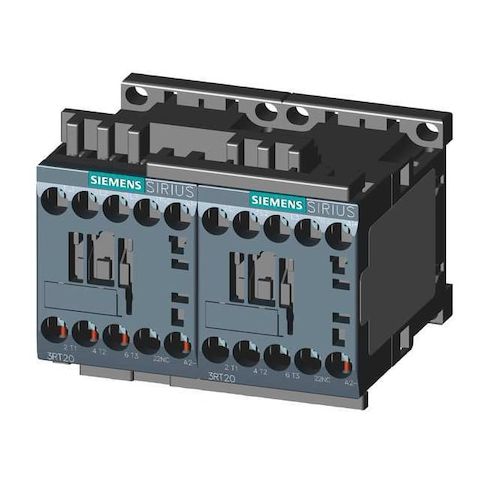

IEC Magnetic Contactor, 2NC, 220V-240V AC, 3 P, Reversing, Screw MPN:3RA23168XB301AP6

• The Siemens IEC Magnetic Contactor is an electrically operated switching device (IEC standard) rated for operation within specified electrical parameters. It uses an electromagnetic coil to open or close main contacts, enabling control of motors and other loads. This 3-pole, reversing contactor operates on a 220–240 V AC coil and is compatible with standard mounting methods as specified. It conforms to the specifications of the SIRIUS 3RA23 series

• features screw terminals
• includes auxiliary contacts as specified
• does not include an enclosure (IP20).

  - Coil voltage: 220–240 V AC

• - Poles: 3
• - Reversing: Yes
• - Main contacts: 3 normally open
• - Auxiliary contacts: 2 normally closed (2 NC)
• - Terminal type: Screw
• - Frame size / Series: S00 / SIRIUS 3RA23
• - Mounting: DIN Rail, Surface
• Vertical
• - Enclosure: No Enclosure
• IP20
• - Maximum voltage: rated for operation up to 690 V AC within specified conditions
• - Frequency: 50/60 Hz
• - Full-load current: Inductive 9 A
• Resistive 22 A
• - Mechanical durability: has a mechanical lifespan based on typical usage conditions
• - Operating temperature: rated for operation within the specified temperature range (-13 to 140 °F)
• - Dimensions: Width 3.54 in
• Height 3.08 in
• Depth 3.71 in
• - Includes: Mechanical Interlock
• Includes Auxiliary Contacts: Yes
• - Standards: REACH Art 33, WEEE (2012/19/EU)
