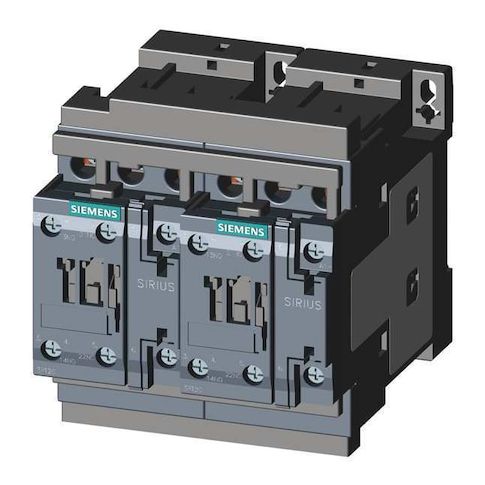

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Reversing, Screw MPN:3RA23248XB301AK6
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling and reversing electrical circuits in a variety of applications. Rated for use with 110-120 V AC coils, this three-pole device features auxiliary contacts and mechanical interlock features for added safety and reliability. Suitable for use in industrial settings, the contactor is ideal for applications such as motor control, conveyor systems, and lighting control. Its compact design and DIN Rail mounting make it easy to integrate into existing systems, while its high-voltage rating ensures reliable operation in demanding environments.
Top product features:
- The Siemens IEC Magnetic Contactor has three poles for operation.
- It has a reversing action for changing the direction of electrical flow.
- It includes auxiliary contacts for additional control and monitoring.
Top product applications:
- Control Panel
- Motor Control
- Power Distribution
The Siemens IEC Magnetic Contactor is a three‑pole reversing device rated for operation within the specified IEC standards. It is rated for use with a 110–120 V AC coil
- features are as specified by manufacturer documentation. The unit includes auxiliary contacts and mechanical interlock features as provided by the manufacturer.
Key features
- - Series / item: SIRIUS 3RA23, IEC Magnetic Contactor
- - Poles: 3
- - Action: Reversing
- - Coil: 110–120 V AC (110/120 V AC)
- - Frequency: 50/60 Hz
- - Main contacts: 3 normally open
- 0 normally closed
- - Auxiliary contacts: 3 total
- Configuration 2NO/2NC
- Form 2NC/2NO
- - Termination: Screw
- - Enclosure: No Enclosure (IP20)
- - Mounting: DIN Rail, Surface
- Vertical orientation
- - Maximum voltage rating: 690 V AC
- - Dimensions: Width 3.54 in
- Height 3.54 in
- Depth 3.82 in (Overall: Width 3.82 in
- Height 4.41 in
- Depth 4.30 in)
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Operating temperature: -13°F to 140°F
- - Includes: Mechanical Interlock
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 4.20
- Package Height: 4.60
- Package Weight: 1.95
