IEC Magnetic Contactor, 2NC, 24V DC, 3 P, Reversing, Screw MPN:3RA23188XB301BB4
Free Shipping
In Stock

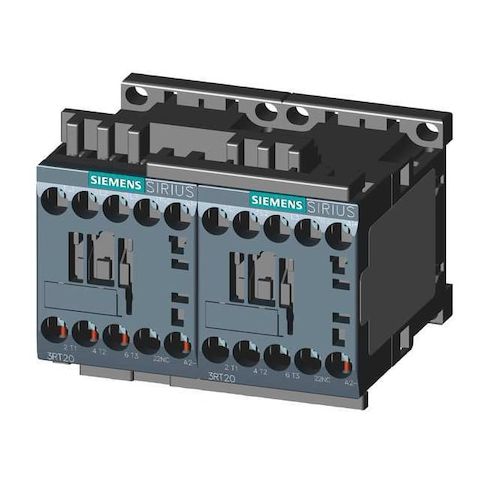

The Siemens SIRIUS 3RA23 IEC Magnetic Contactor is a versatile and reliable solution for a wide range of applications. Suitable for use in industrial automation, control systems, and power distribution, this 3-pole reversing-action contactor features screw terminals and is designed for DIN rail or surface mounting in a vertical orientation. With a 24V DC coil and mechanical interlock, it provides safe and efficient operation. The contactor's 2 NC auxiliary contacts and 3 NC main contacts make it ideal for applications requiring high reliability and flexibility, such as in manufacturing, process control, and renewable energy systems.
Top product features:
- The product has 3 normally open (NO) main contacts and 0 normally closed (NC) main contacts.
- It features 2 NC auxiliary contacts.
- It has a mechanical interlock.
Top product applications:
- Industrial Automation
- This magnetic contactor is suitable for use in industrial automation systems, particularly in applications where a 3-pole reversing-action contactor is required.
- Power Distribution
The SIRIUS 3RA23 family (frame S00) 3-pole reversing-action magnetic contactor with a 24 V DC coil. It features screw terminals and is designed for DIN rail or surface mounting in a vertical orientation. Rated for operation within 690 V AC maximum, IP20 protection, and does not include an enclosure or embedded surge suppressor. It includes a mechanical interlock and auxiliary contacts: 3 normally open (NO) main contacts, 0 normally closed (NC) main contacts, and 2 NC auxiliary contacts.
Key features
- - Action: Reversing
- - Poles: 3
- Phase: Three
- - Main contacts: 3 NO
- 0 NC
- - Auxiliary contacts: 2 NC
- - Coil voltage: 24 V DC
- - Frame/Series: S00
- Series: SIRIUS 3RA23
- - Mounting: DIN Rail, Surface
- Mounting Position: Vertical
- Terminals: Screw
- - Enclosure: No Enclosure
- IP Rating: IP20
- - Rated voltage: 690 V AC maximum
- - Dimensions (approx): Width 3.54 in
- Height 3.00 in
- Depth 2.87 in
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Mechanical durability: approximately ten million cycles
- - Operating temperature: -13 to +140 °F
- - Includes: Mechanical Interlock
- Includes Auxiliary Contacts: Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 24 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.90
- Package Height: 3.10
- Package Weight: 1.35
