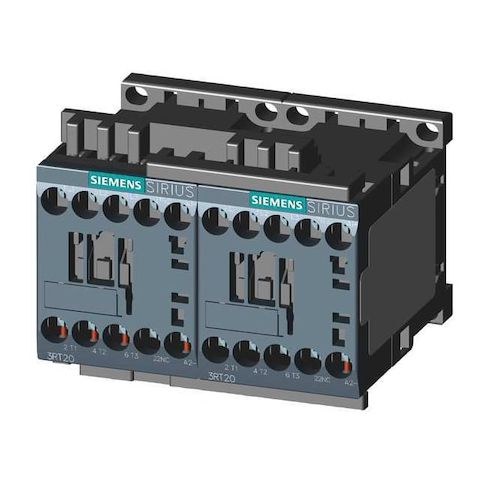

IEC Magnetic Contactor, 2NC, 24V DC, 3 P, Reversing, Screw MPN:3RA23178XB301BB4
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a versatile and reliable solution for controlling industrial loads, including motors and other devices. With its 3-pole, reversing-function design, it can be used to control the direction of motor rotation, making it ideal for applications such as conveyor systems, pumps, and fans. The contactor's compact design and easy-to-use interface make it simple to integrate into existing control systems, while its high-quality construction ensures reliable operation in demanding industrial environments. Suitable for use in a variety of industries, including manufacturing, logistics, and energy, this contactor provides a reliable and efficient solution for controlling industrial loads.
Top product features:
- Energizing the coil opens or closes the main contacts to control loads such as motors and other industrial devices.
- The device has two NC auxiliary contacts for signaling or control.
- The device is rated for operation with specified coil voltages and control functions.
Top product applications:
- Motor Control
- Industrial Automation
- Control Panel
The Siemens IEC Magnetic Contactor is a 3-pole, reversing-function switchgear rated for operation with specified coil voltages and control functions. Energizing the coil opens or closes the main contacts to control loads such as motors and other industrial devices, with two NC auxiliary contacts for signaling or control. Conforms to IEC standards and is intended for use in specified mounting configurations.
Key features:
- - Coil Voltage: 24V DC
- - Action: Reversing (Reversing: Yes)
- - Poles/Main Contacts: 3 poles
- 3 NO / 0 NC
- - Auxiliary Contacts: 2 NC
- - Frame/Series: S00
- Series SIRIUS 3RA23
- - Maximum Voltage Rating: 690V AC
- - IP Rating: IP20
- - Enclosure: No Enclosure
- Mounting Style: DIN Rail, Surface
- Mounting Position: Vertical
- - Terminal Connection Type: Screw
- - Dimensions (W x H x D): 3.5 in x 3.25 in x 3.8 in
- - Operating Temperature: -13 to 140 Degrees F
- - Mechanical Durability: 10,000,000 cycles
- - Includes: Mechanical Interlock
- Includes Auxiliary Contacts: Yes
- - Item/Type: IEC Magnetic Contactor
- Phase: Three
- - Enclosure Rating: No Enclosure
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.90
- Package Height: 3.20
- Package Weight: 1.35
