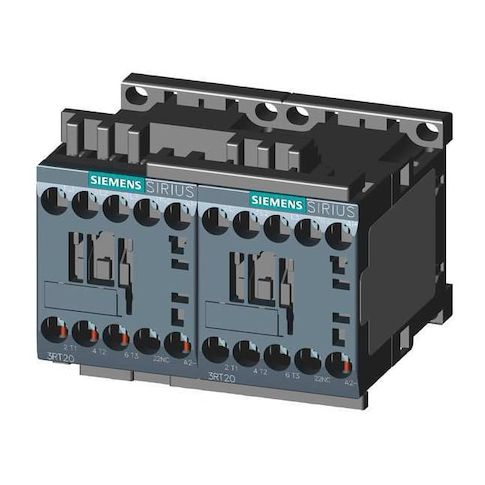

IEC Magnetic Contactor, 2NC, 24V DC, 3 P, Reversing, Screw MPN:3RA23158XB301BB4
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for a wide range of applications, including industrial control panels and automation systems. With its 3-pole reversing function and 24V DC coil, it provides smooth and precise control over electrical circuits. The device is compatible with standard control panel configurations and supports DIN Rail or surface mounting, making it easy to integrate into existing systems. Its robust design and high cycle count ensure long-lasting performance, making it an ideal choice for applications in harsh environments, such as manufacturing and process control.
Top product features:
- Operates with a 24V DC coil
- Switches 3 poles in a reversing action
- Features 2 normally closed auxiliary contacts
Top product applications:
- Industrial Automation
- Control Panel Configurations
- Power Distribution Systems
The SIEMENS IEC Magnetic Contactor is a 3-pole reversing device with a 24 V DC coil and screw terminals. As an IEC magnetic contactor, it is an electrically operated switching device rated for operation within the specified voltage ranges and intended for switching applications, compatible with standard control panel configurations as per manufacturer specifications. This unit belongs to the SIRIUS 3RA23 series (frame size S00) and supports DIN Rail or surface mounting with no enclosure.
- Coil Voltage: 24 V DC
- - Action: Reversing
- - Poles: 3
- Phase: Three
- - Main Contacts: 3 normally open
- 0 normally closed
- - Auxiliary Contacts: 2 NC
- - Frame Size / Series: S00
- SIRIUS 3RA23
- - Mounting Style / Position: DIN Rail, Surface
- Vertical
- - Terminal Connection Type: Screw
- - Maximum Voltage Rating: 690V AC
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Includes: Mechanical Interlock
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Temperature Range: -13°F to 140°F
- - Mechanical Durability: 10,000,000 cycles
- - Overall Dimensions: Width 2.88 in
- Height 3.08 in
- Depth 3.71 in
- - Auxiliary Contact Count: 2
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.00
- Package Height: 3.80
- Package Weight: 1.35
