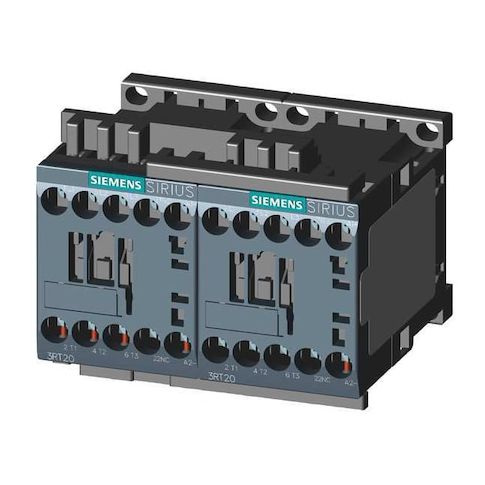

IEC Magnetic Contactor, 2NC, 110V-120V AC, 3 P, Reversing, Screw MPN:3RA23158XB301AK6
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling loads in various industrial applications. Its compact and modular design makes it easy to integrate into control panels, while its three-pole, reversing operation allows for smooth and safe control of motors and lighting. With a voltage rating of 110-120V AC, this contactor is perfect for use in commercial and residential settings. Its durable construction and high mechanical durability ensure long-lasting performance, making it an ideal choice for applications such as HVAC systems, lighting control, and motor control. Its compact size and standardized design also simplify maintenance and replacement.
Top product features:
- Three-pole operation allows for the control of multiple loads or circuits from a single device.
- The reversing action enables the device to switch the direction of a load or circuit, useful in applications such as motor control.
- Two normally closed auxiliary contacts provide a redundant switching path for control circuits.
Top product applications:
- Motor Control
- Lighting Control
- Relay Replacement
The Siemens IEC Magnetic Contactor is a three-pole, reversing, coil-driven switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close its main contacts, suitable for controlling loads such as motors and lighting within specified parameters. Part of the SIRIUS 3RA23 family, frame size S00
- compact and modular for standardized sizing and interchangeability in control panels.
- Action: Reversing
- - Phase: Three
- - Poles: 3
- - Coil Voltage: 110-120 V AC
- - Frequency: 50/60 Hz
- - Maximum Voltage Rating: 690V AC
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Mounting Style: DIN Rail, Surface
- - Mounting Position: Vertical
- - Frame Size: S00
- - Series: SIRIUS 3RA23
- - Interlocks: Electrical Interlock, Mechanical Interlock
- - Auxiliary Contacts: 2 NC
- - Number of Normally Open Main Contacts: 3
- - Number of Normally Closed Main Contacts: 0
- - Mechanical Durability: 10000000
- - Depth: 2.87 in
- - Height: 3.25 in
- - Width: 3.54 in
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.90
- Package Height: 3.10
- Package Weight: 1.10
